BE46380 - SPEAKERCABLE PVC 2x4.0mm²


SPEAKERCABLE PVC 2x4.0mm²

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper4.00 mm²56x0.30 mm
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPVC - Polyvinyl Chloride3.50 mm0.07 mm
Color Chart
NumberColor
Wire 1Black
Wire 2Red
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride9.00 mm0.10 mm
OuterJacket1, Table Note: Flexible Matte Finish Sheath

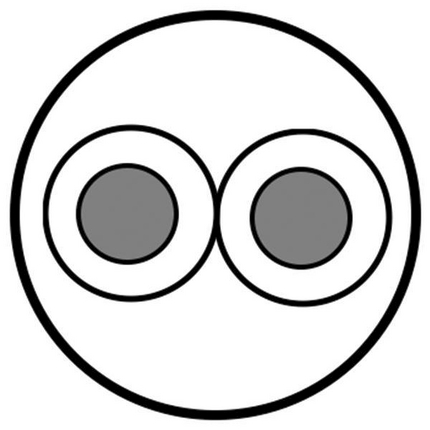

Construction and Dimensions

Cabling
Description
2 wires twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
4.5 Ohm/km
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temp Range: -15°C To +60°C
Other Temp Range: -5 to +60 °C

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE46380.01100BlackReel100 m8719605027467
BE46380.011000BlackReel1,000 m8719605027474
BE46380.00100GrayReel100 m8719605027443
BE46380.00500GrayReel500 m8719605027450

History

Update and Revision: Revision Number: 0.122 Revision Date: 04-06-2020
Date: 2004-01-01
