BE46349 - MICROPHONE CABLE 24 AWG PVC


MICROPHONE CABLE 24AWG/0.22mm² 0.22mm² PVC

Product Overview

Suitable Applications: Microphone Cable

Physical Characteristics (Overall)

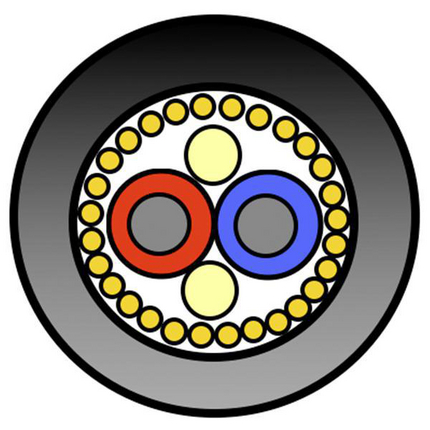

Conductor
AWGStrandingMaterialConstruction n x D
24StrandedBC - Bare Copper32x0.10 mm
Conductor Count: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPE - Polyethylene1.45 mm0.05 mm
Color Chart
NumberColor
Wire 1Red
Wire 2Blue
Outer Shield Material
TypeMaterialMin. Coverage [%]
Spiral Serve / ScreenBare Copper (BC)90%
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride6.10 mm0.20 mm
Table Notes: Flexible Matte Finish Sheath

Construction and Dimensions

Cabling
DescriptionFiller
2 fillers + 2 wires twistedCotton yarn (2x)

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
78 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
60 pF/m110 pF/m

Temperature Range

Storage Temp Range: -15°C To +60°C
Other Temp Range: -5 to +60 °C

Mechanical Characteristics

Min Bend Radius During Installation: 61 mm

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE46349.10100BlackReel100 m8719605027344
BE46349.00500BlackReel500 m8719605027337
BE46349.001000BlackReel1,000 m8719605027313
BE46349.002000BlackReel2,000 m8719605027320
BE46349.13100BlueReel100 m8719605027375
BE46349.15100GrayReel100 m8719605027399
BE46349.15500GrayReel500 m8719605185709
BE46349.11100GreenReel100 m8719605027351
BE46349.12100RedReel100 m8719605027368
BE46349.14100YellowReel100 m8719605027382

History

Update and Revision: Revision Number: 0.133 Revision Date: 04-08-2020
Date: 2005-01-01
