(4)ANALOG AUDIO 4 PAIR, 26AWG/0.14mm², ISTP, PVC, STAGE
| Suitable Applications: | The Belden 46-analog-series is a flexible audio snake cable with an overall braid shield; This makes the cable suitable for mobile applications; Jacketed pairs are individually numbered for easy identification |
| AWG | Stranding | Material | Cross Section | Construction n x D |
|---|---|---|---|---|
| 26 | 18x38 | TC - Tinned Copper | 0.14 mm² | 18x0.10 mm |
| Conductor Count: | 8 |
| Total Number of Pairs: | 4 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene | 1.05 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 t/m 4 | Red & White |
| Type | Material | Min. Coverage [%] |
|---|---|---|
| Tape | Polyester | |
| Spiral Serve / Screen | Tinned Copper (TC) | 90% |
| Material | Color | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| PVC - Polyvinyl Chloride | Gray (like RAL 7001) | 3.05 mm | 0.10 mm |
| Table Notes: | Elements numbered 1 - 4 |
| Type | Material | Min. Coverage [%] |
|---|---|---|
| Braid | Tinned Copper (TC) | 80% |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PVC - Polyvinyl Chloride | 12.50 mm | 0.30 mm |
| Table Notes: | Flexible Matte Finish Sheath |
| Description | Filler |
|---|---|

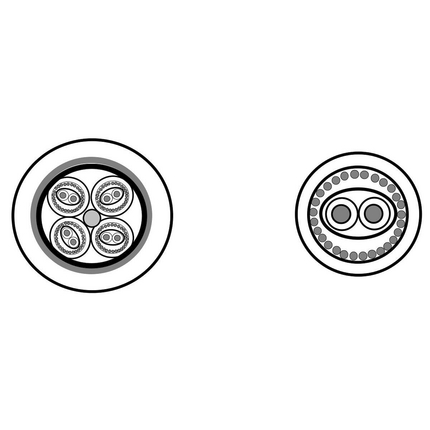

| 1 center filler + 4 pairs covered with a non-woven separating foil | PVC (1.45 mm) |
| Max. Conductor DCR |
|---|
| 260 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
|---|
| 70 pF/m |
| Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|
| 90 Ohm | +/- 20 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66% |
| Installation Temperature Range: | -5°C To +70°C |
| Storage Temperature Range: | -30°C To +70°C |
| Other Temp Range: | -30 to +70 °C |
| Min. Bend Radius During Installation: | 125 mm |
| Min. Bend Radius During Operation: | 187.5 mm |
| CPR Euroclass: | Eca |
| Environmental Space: | Indoor - Euroclass Eca |
| IEC Flammability: | IEC 60332-1-2 |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| BE46312.00250 | Black | Reel | 250 m | 8719605027214 |
| BE46312.00500 | Black | Reel | 500 m | 8719605027221 |
| Update and Revision: | Revision Number: 0.173 Revision Date: 02-03-2025 |
