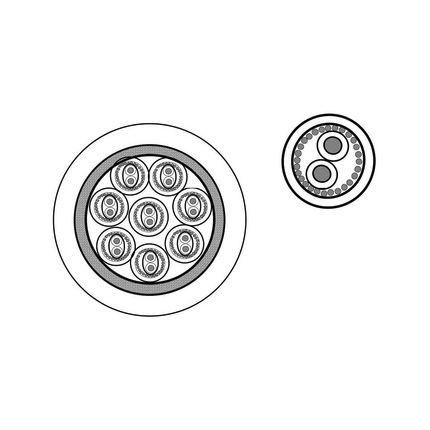

(10)8 PAIR AES/EBU, 26AWG/0.14mm², ISTP, FLEX, LSZH, STAGE
| Suitable Applications: | Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; The cable is very flexible and has a small outer diameter for use in applications where space is limited |
| AWG | Stranding | Material | Cross Section | Construction n x D |
|---|---|---|---|---|
| 26 | 7x34 | TC - Tinned Copper | 0.14 mm² | 7x0.16 mm |
| Conductor Count: | 16 |
| Total Number of Pairs: | 8 |
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene (Foam) | 1.1 mm | 0.03 mm |
| Number | Color |
|---|---|
| Pair 1 t/m 8 | White & Blue |
| Type | Material | Nominal Diameter | Min. Coverage [%] |
|---|---|---|---|
| Spiral Serve / Screen | TC - Tinned Copper | 2.40 mm | 90% |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| Nylon | 2.8 mm | 0.1 mm |
| Type | Material | Nominal Diameter | Min. Coverage [%] |
|---|---|---|---|
| Braid | TC - Tinned Copper | 8.3 mm | 90% |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen flame retardant | 10.3 mm | 0.4 mm |
| Description |
|---|
| 8 pairs covered with a non-woven separating foil |
| Max. Conductor DCR |
|---|
| 130 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
|---|
| 50 pF/m |
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | +/- 15 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 2.3 dB/100m |
| 6 MHz | 9.5 dB/100m |
| 10 MHz | 16 dB/100m |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 60% |
| Other Temp Range: | -25 to +70 °C |
| Min Bend Radius During Installation: | 103 mm |
| Min Bend Radius During Operation: | 154.5 mm |
| Environmental Space: | Indoor |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-01-01 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| BE46266.01500 | Black | Reel | 500 m | 8719605027054 |
| BE46266.019999 | Black | Reel | 500 m | 8719605027061 |
| BE46266.00250 | Purple | Reel | 250 m | 8719605027030 |
| BE46266.00500 | Purple | Reel | 500 m | 8719605027047 |
| Update and Revision: | Revision Number: 0.135 Revision Date: 04-08-2020 |
