BE43907 - Speaker Cable PVC 8x2.5mm², CPR Eca.


Speaker Cable, 8 Conductor 2.5mm² (50 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), PVC Insulation, PVC Jacket, Flexible, CPR Euroclass Eca.

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
13StrandedBC - Bare Copper2.5 mm²320x0.10 mm
Conductor Count: 8
Insulation
ElementTypeMaterialNominal DiameterDiameter +/- Tolerance
Outer Conductor(s)InsulationPVC - Polyvinyl Chloride2.85 mm0.1 mm
Central ConductorPVC - Polyvinyl Chloride3.75 mm0.1 mm
Color Chart
NumberColor
Wire 1 (central)Red
Wire 2Blue
Wire 3Black
Wire 4White
Wire 5Green
Wire 6Yellow
Wire 7Purple
Wire 8Brown
Outer Jacket
MaterialNominal DiameterDiameter +/- Tolerance
PVC - Polyvinyl Chloride12.4 mm0.3 mm
Table Notes: Matte Finish

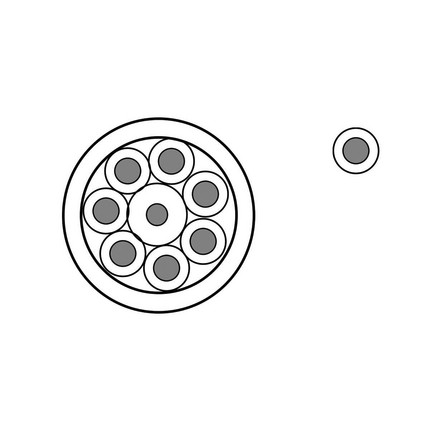

Construction and Dimensions

Cabling
Description
8 elements twisted together covered with a non-woven separating foil

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
8 Ohm/km
Current
Max. Recommended Current [A]
9 A
Voltage
Voltage Rating [V]
300 V

Temperature Range

Storage Temperature Range: -15°C To +60°C
Other Temp Range: -5 to +60 °C

Mechanical Characteristics

Max. Pull Tension: 20 N
Min. Bend Radius During Installation: 65 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item #ColorPut-Up TypeLength
BE43907.00250BlackReel250 m

History

Update and Revision: Revision Number: 0.172 Revision Date: 02-03-2025
Date: 2004-01-01
