BE43906 - LIGHTNING CONTROL DMX512 PVC


LIGHTNING CONTROL 2 PAIR 22AWG/0.34mm² DMX512 PVC

Product Overview

Environmental Space: Indoor
Suitable Applications: DMX 512 lighting control applications

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
227x30TC - Tinned Copper7x0.25 mm
Conductor Count: 4
Total Number of Pairs: 2
Insulation
TypeMaterialNominal DiameterDiameter +/- Tolerance
InsulationPolyethylene1.35 mm0.10 mm
Color Chart
NumberColor
Pair 1White & Red
Pair 2Green & Black
Outer Shield Material
TypeMaterialCoverage [%]Thickness of FoilDrainwire MaterialDrainwire AWGDrainwire Construction n x DDrainwire Position
BraidTC - Tinned Copper80 %TC - Tinned Copper247x0.20 mmOver foil, under braid
Foil, Aluminum outsideAluminum/Polyester100 %9/23 µm
Outer Jacket Material
MaterialNominal DiameterDiameter +/- Tolerance
Flexible PVC with matte finish6.80 mm0.25 mm

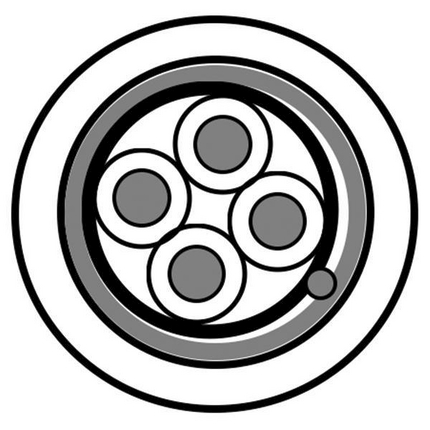

Construction and Dimensions

Cabling
Description
2 pairs twisted

Electrical Characteristics

Conductor DCR
Max. Conductor DCRMax. Outer Shield DCR
58 Ohm/km15 Ohm/km
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
70 pF/m112 pF/m
Inductance
Nominal Inductance
0.68 µH/m
Voltage
Voltage Rating [V]
900 V

Temperature Range

Storage Temp Range: -25°C To +70°C
Other Temp Range: -5 to +70 °C

Mechanical Characteristics

Bulk Cable Weight: 61 kg/km

Standards

CPR Euroclass: Fca

Applicable Environmental and Other Programs

EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Part Number

Variants
Item #ColorLength
BE43906.001000Black1,000 m
BE43906.00250Black250 m
BE43906.00500Black500 m
BE43906.011000Blue1,000 m
BE43906.01250Blue250 m
BE43906.01500Blue500 m

History

Update and Revision: Revision Number: 0.132 Revision Date: 09-02-2019
Date: 2005-01-01
