BE41494 - Speaker Cable PVC 2x0.50mm², parallel, CPR Eca.

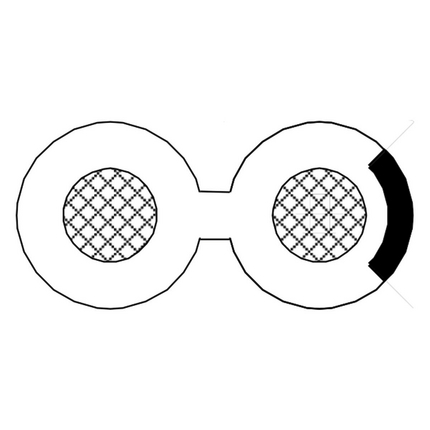

Speaker Cable, 2 Conductor 0.5mm² (28 x 0.15mm) Oxygen-Free Bare Copper (High Conductivity), PVC insulation, parallel, CPR Euroclass Eca.

Product Overview

Suitable Applications: Speaker cable

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper0.5 mm²28x0.15 mm
Table Notes: According to IEC 228 Class 5
Conductor Count: 2
Outer Jacket
MaterialMin. Wall ThicknessNominal Wall Thickness
PVC - Polyvinyl Chloride0.30 mm0.50 mm
Table Notes: Width of the stripe between 45C and 90C of the core-circumference

Construction and Dimensions

OuterJacket1, Nominal Width: 3.88 mm
OuterJacket1, Nominal Wall Thickness: 1.89 mm
OuterJacket1, Nom Thickness +/- Toler: 0.15 mm

Electrical Characteristics

Conductor DCR
Max. Conductor DCR
39 Ohm/km
Min Insulation Resistance: 2 MOhm*km
Voltage
Voltage Rating [V]
48 V

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor - Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2

Related Part Numbers

Variants
Item #ColorPut-Up TypeLengthEAN
BE41494.001000Black, White StripeReel1,000 m8719605025883
BE41494.002000Black, White StripeReel2,000 m8719605025890
BE41494.008000Black, White StripeReel8,000 m8719605025906
BE41494.018000Black, White StripeReel8,000 m8719605025913

History

Update and Revision: Revision Number: 0.145 Revision Date: 04-08-2022
Date: 1998-01-01
