BE41424 - Lead Wire, 0.75mm² Str BC, PVC Ins, 70°C


24x0.2B PVC VDMS 70C

Product Overview

Suitable Applications: IEC 189-3, VMDS 70C

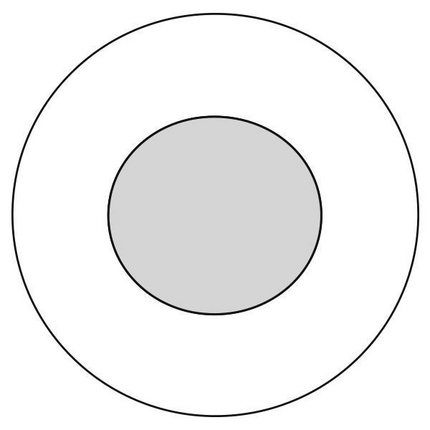

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper0.75 mm²24x0.20 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall Thickness
InsulationPVC - Polyvinyl Chloride1.77 mm0.06 mm0.25 mm
Insulation, Table Note: TI1

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor26 Ohm/km

Standards

UL AWM Style: N/A
Military Specification: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: On label
EU RoHS Compliance Date (yyyy-mm-dd): 1999-01-01

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41424.004000BlackReel4,000 m8719605025685
BE41424.094000BlueReel4,000 m8719605025777
BE41424.044000BrownReel4,000 m8719605025722
BE41424.084000GrayReel4,000 m8719605025760
BE41424.054000GreenReel4,000 m8719605025739
BE41424.064000OrangeReel4,000 m8719605025746
BE41424.074000RedReel4,000 m8719605025753
BE41424.034000VioletReel4,000 m8719605025715
BE41424.014000WhiteReel4,000 m8719605025692
BE41424.024000YellowReel4,000 m8719605025708

History

Update and Revision: Revision Number: 0.121 Revision Date: 04-28-2020
Date: 1999-01-01
No accessories are available for this product
