BE41339 - Lead Wire, #8 Str BC, PVC Ins, AWM 1017


UL AWM ST1017 VW1 8AWG/NX41B CSA TEW FT1

Product Overview

Suitable Applications: UL Appliance Wiring Material Subject 758 Style 1017, 80C, 600 volt, VW-1, oil 60C; CSA Equipment wires C22.2 no. 127 Type TEW, 105C, 600V, FT1, oil 60C

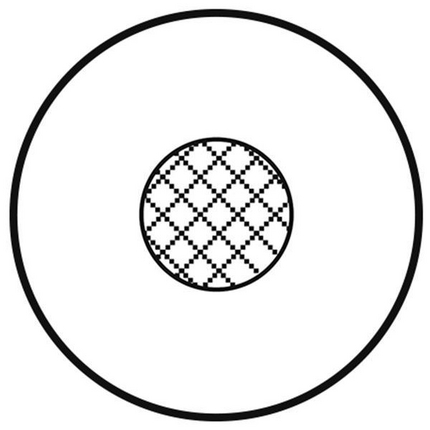

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialCross SectionConstruction n x D
8StrandedBC - Bare Copper8.2 mm²2156x0.07 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall Thickness
InsulationPVC - Polyvinyl Chloride7.5 mm0.15 mm1.19 mm

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor2.23 Ohm/km
Voltage
UL Voltage RatingVoltage Test (In Line)
600 V10 kV AC

Temperature Range

UL Temp Rating: 80°C

Standards

UL AWM Style Compliance: UL AWM 1017
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: VW-1
CSA Flammability: FT 1
UL voltage rating: 600 V RMS

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41339.041400BlueReel1,400 m8719605025678
BE41339.031400RedReel1,400 m8719605025661
BE41339.01500YellowgreenReel500 m8719605025630
BE41339.011400YellowgreenReel1,400 m8719605025623

History

Update and Revision: Revision Number: 0.146 Revision Date: 07-26-2020
Date: 2004-01-01
