BE41258 - Lead Wire, 0.14mm² Str TC, PVC Ins, 70°C


18x0.1T PVC VMDS 70C

Product Overview

Suitable Applications: IEC 189-1, VDMS 70C

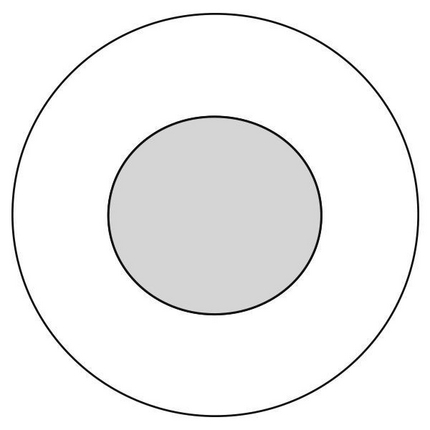

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedTC - Tinned Copper0.14 mm²18x0.10 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall ThicknessNominal Wall Thickness
InsulationPVC - Polyvinyl Chloride1.1 mm0.08 mm0.25 mm0.3 mm

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor136 Ohm/km

Temperature Range

Operating Temp Range (Flexible Install): -25°C To +70°C

Standards

UL AWM Style: N/A
Military Specification: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: On label
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41258.0013KBlackReel12,600 m8719605025357
BE41258.2513KBlueReel12,600 m8719605025609
BE41258.0113KBlue, Black RingReel12,600 m8719605025364
BE41258.2013KBrownReel12,600 m8719605025555
BE41258.0213KBrown, Black RingReel12,600 m8719605025371
BE41258.2413KGrayReel12,600 m8719605025593
BE41258.2113KGreenReel12,600 m8719605025562
BE41258.0613KGreen, Black RingReel12,600 m8719605025418
BE41258.0513KGreen, Brown RingReel12,600 m8719605025401
BE41258.2213KOrangeReel12,600 m8719605025579
BE41258.2313KRedReel12,600 m8719605025586
BE41258.0713KRed, Black RingReel12,600 m8719605025425
BE41258.1913KVioletReel12,600 m8719605025548
BE41258.1713KWhiteReel12,600 m8719605025524
BE41258.1613KWhite, Black RingReel12,600 m8719605025517
BE41258.0813KWhite, Blue RingReel12,600 m8719605025432
BE41258.0913KWhite, Brown RingReel12,600 m8719605025449
BE41258.1213KWhite, Gray RingReel12,600 m8719605025470
BE41258.1113KWhite, Green RingReel12,600 m8719605025463
BE41258.1313KWhite, Orange RingReel12,600 m8719605025487
BE41258.1413KWhite, Red RingReel12,600 m8719605025494
BE41258.1513KWhite, Violet RingReel12,600 m8719605025500
BE41258.1013KWhite, Yellow RingReel12,600 m8719605025456
BE41258.1813KYellowReel12,600 m8719605025531
BE41258.0313KYellow, Brown RingReel12,600 m8719605025388
BE41258.0413KYellow, Green RingReel12,600 m8719605025395

History

Update and Revision: Revision Number: 0.132 Revision Date: 01-31-2020
Date: 2005-01-01
