BE41231 - Lead Wire, 0.44mm² Str BC, PVC Ins, 70°C


14x0.2B PVC 70C

Product Overview

Suitable Applications: IEC 189-3 Equipment wire 70C

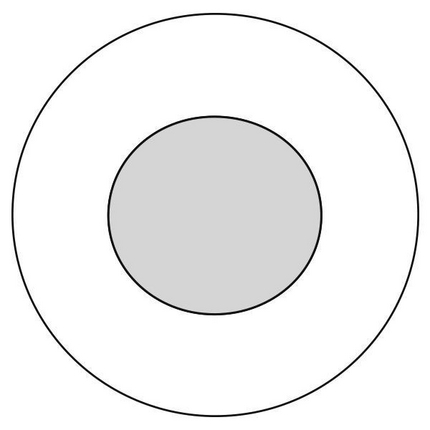

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper0.44 mm²14x0.20 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall Thickness
InsulationPVC - Polyvinyl Chloride2.05 mm0.08 mm0.4 mm

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor(s)45 Ohm/km

Temperature Range

Operating Temp Range (Flexible Install): -25°C To +70°C

Standards

UL AWM Style Compliance: N/A
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: On label
EU RoHS Compliance Date (yyyy-mm-dd): 1999-01-01

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41231.003000BlackReel3,000 m8719605025241
BE41231.103000BlueReel3,000 m8719605025333
BE41231.063000BrownReel3,000 m8719605025302
BE41231.093000GrayReel3,000 m8719605025326
BE41231.083000RedReel3,000 m8719605025319
BE41231.053000VioletReel3,000 m8719605025296
BE41231.033000WhiteReel3,000 m8719605025272
BE41231.013000White, Green RingReel3,000 m8719605025258
BE41231.023000White, Red RingReel3,000 m8719605025265
BE41231.043000YellowReel3,000 m8719605025289
BE41231.163000Yellow, Green RingReel3,000 m8719605025340

History

Update and Revision: Revision Number: 0.127 Revision Date: 07-26-2020
Date: 1999-01-01
