BE41206 - Lead Wire, 0.4mm² Str BC, PVC Ins, 70°C


14x0.2B PVC VMDS 70C

Product Overview

Suitable Applications: VMDS 70C

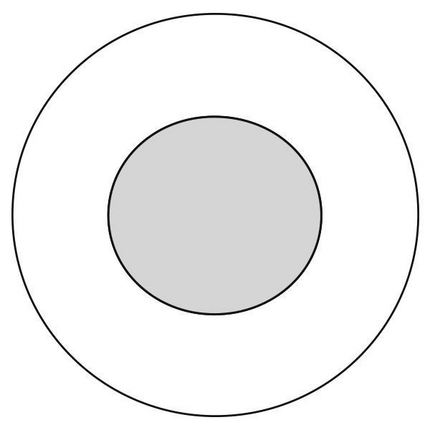

Physical Characteristics (Overall)

Conductor
StrandingMaterialCross SectionConstruction n x D
StrandedBC - Bare Copper0.4 mm²14x0.20 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall Thickness
InsulationPVC - Polyvinyl Chloride1.85 mm0.01 mm0.35 mm

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor45.5 Ohm/km

Temperature Range

Operating Temp Range (Flexible Install): -25°C To +70°C

Standards

UL AWM Style: N/A
Military Specification: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU RoHS Compliance Date (yyyy-mm-dd): 1998-01-01

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41206.004000BlackReel4,000 m8719605025036
BE41206.084000BlueReel4,000 m8719605025098
BE41206.184000BrownReel4,000 m8719605025128
BE41206.074000GrayReel4,000 m8719605025081
BE41206.044000GreenReel4,000 m8719605025050
BE41206.124000OrangeReel4,000 m8719605025104
BE41206.174000RedReel4,000 m8719605025111
BE41206.064000VioletReel4,000 m8719605025074
BE41206.014000WhiteReel4,000 m8719605025043
BE41206.054000YellowReel4,000 m8719605025067

History

Update and Revision: Revision Number: 0.123 Revision Date: 01-31-2020
Date: 1998-01-01
No accessories are available for this product
