BE41203 - Lead Wire, #24 Str TC, PVC Ins, AWM 1007


UL AWM ST1007 VW1 20AWG/16x32T CSA TR 64

Product Overview

Suitable Applications: UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

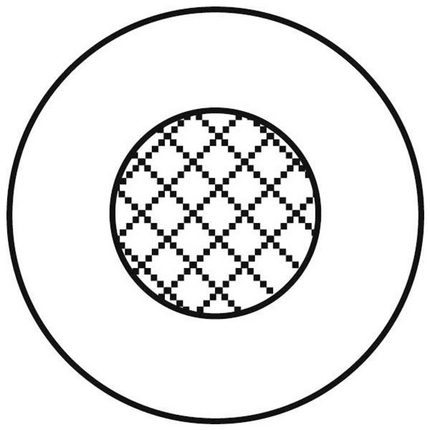

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
20StrandedTC - Tinned Copper16x0.205 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall ThicknessNominal Wall Thickness
InsulationPVC - Polyvinyl Chloride1.9 mm0.06 mm0.33 mm0.38 mm

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor34.6 Ohm/km
Voltage
UL Voltage Rating
300 V

Temperature Range

UL Temp Rating: 80°C

Standards

UL AWM Style: UL AWM 1007
CSA Rating: CSA-C22.2 no. 16 Type TR-64
Military Specification: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: On label
EU RoHS Compliance Date (yyyy-mm-dd): 2005-01-01

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: VW-1
UL voltage rating: 300 V RMS

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41203.001850BlackReel1,850 m8719605024916
BE41203.111850BlueReel1,850 m8719605025029
BE41203.051850BrownReel1,850 m8719605024961
BE41203.091850GrayReel1,850 m8719605025005
BE41203.061850GreenReel1,850 m8719605024978
BE41203.071850OrangeReel1,850 m8719605024985
BE41203.101850PinkReel1,850 m8719605025012
BE41203.081850RedReel1,850 m8719605024992
BE41203.041850VioletReel1,850 m8719605024954
BE41203.021850WhiteReel1,850 m8719605024930
BE41203.031850YellowReel1,850 m8719605024947
BE41203.011850Yellow, Green RingReel1,850 m8719605024923

History

Update and Revision: Revision Number: 0.129 Revision Date: 01-31-2020
Date: 2005-01-01
