BE41201 - Lead Wire, #20 Str TC, PVC Ins, AWM 1007


UL AWM ST1007 VW1 24AWG/7x32T CSA TR 64

Product Overview

Suitable Applications: UL Appliance Wiring Material Subject 758 Style 1007, 80C, 300 Volt.; CSA-C22.2 no. 16 Type TR-64 90C, 600 Volt peak.

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialConstruction n x D
24StrandedTC - Tinned Copper7x0.20 mm
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall ThicknessNominal Wall Thickness
InsulationPVC - Polyvinyl Chloride1.44 mm0.06 mm0.33 mm0.38 mm

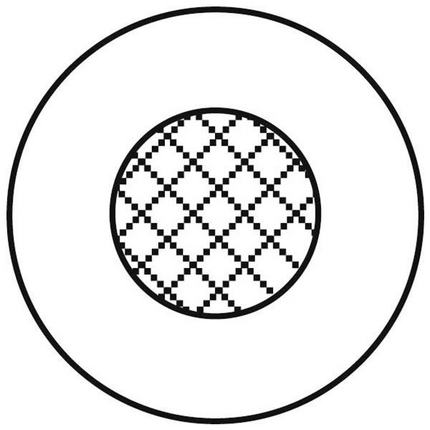

Construction and Dimensions

Min Elongation at Breakof Conductors: 5 %

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor(s)83.9 Ohm/km
Voltage
UL Voltage Rating
300 V

Temperature Range

UL Temp Rating: 80°C

Standards

UL AWM Style Compliance: UL AWM 1007
CSA Rating: CSA-C22.2 no. 16 Type TR-64
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: On label
EU RoHS Compliance Date (yyyy-mm-dd): 2012-02-07

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: VW-1
UL voltage rating: 300 V RMS

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41201.003600BlackReel3,600 m8719605024794
BE41201.0020KBlackReel20,000 m8719605024787
BE41201.101350BlueReel1,350 m8719605024893
BE41201.103600BlueReel3,600 m8719605024909
BE41201.043600BrownReel3,600 m8719605024831
BE41201.083600GrayReel3,600 m8719605024879
BE41201.053600GreenReel3,600 m8719605024848
BE41201.063600OrangeReel3,600 m8719605024855
BE41201.093600PinkReel3,600 m8719605024886
BE41201.073600RedReel3,600 m8719605024862
BE41201.013600WhiteReel3,600 m8719605024800
BE41201.023600YellowReel3,600 m8719605024817

History

Update and Revision: Revision Number: 0.149 Revision Date: 07-26-2020
Date: 2012-02-07
