BE41138 - Lead Wire, #8 Str BC, PVC Ins, AWM 1017


0.4B PVC IEC 189/3 70C

Product Overview

Suitable Applications: IEC 189-3, VMD 70C rated 300/500V

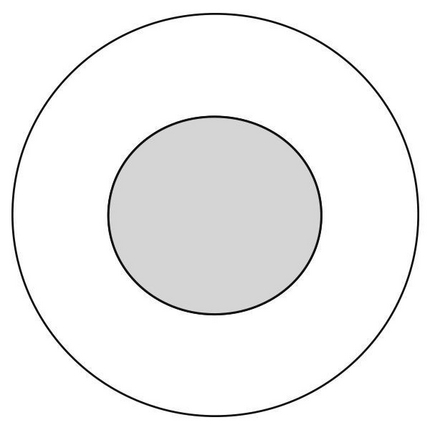

Physical Characteristics (Overall)

Conductor
StrandingMaterialNominal Diameter
SolidBC - Bare Copper0.4 in
Conductor Count: 1
Insulation
TypeMaterialNominal DiameterDiameter +/- ToleranceMin. Wall ThicknessNominal Wall Thickness
InsulationPVC - Polyvinyl Chloride0.82 mm0.05 mm0.15 mm0.2 mm

Electrical Characteristics

Conductor DCR
ElementMax. Conductor DCR
Conductor(s)144 Ohm/km
Voltage
Voltage Rating [V]
300 V

Standards

UL AWM Style Compliance: N/A
Military Compliance: N/A

Applicable Environmental and Other Programs

Environmental Space: Indoor
EU CE Mark: On label
EU RoHS Compliance Date (yyyy-mm-dd): 2001-01-01

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Part Number

Variants
Item #ColorPutup TypeLengthEAN
BE41138.0310KBlueReel10,000 m8719605024770
BE41138.0210KGrayReel10,000 m8719605024763
BE41138.0110KRedReel10,000 m8719605024756
BE41138.0010KYellowReel10,000 m8719605024749

History

Update and Revision: Revision Number: 0.135 Revision Date: 07-26-2020
Date: 2001-01-01
No accessories are available for this product
