(4)Baying kit with Sealing strip for E-Serie Cabinets.
| Suitable Applications: | Baying kits are used for connecting Enclosures together in a row |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |

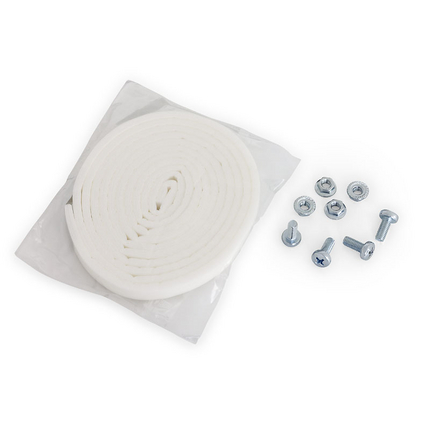

| Included Parts: | 4 x Torx bolts, 4x nuts, sealing tape |
| Packaging: | packed in a bag. |
| Item # | Application | Colour |
|---|---|---|
| EDAC2270 | E-Series Cabinets | Metallic |
| Update and Revision: | Revision Number: 0.56 Revision Date: 04-08-2022 |
