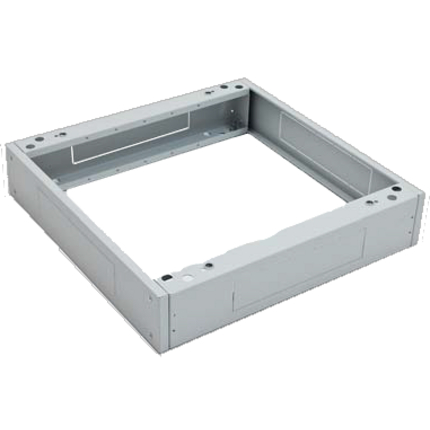

(4)Bases for E-Serie Cabinets with knockouts for cable entry. The base is constructed out of two side profiles which correspond to the depth of the cabinet, and two cover panels (front and back) with a corresponding width. .
| Suitable Applications: | Bases can be used to lift the cabinet to provide cable access from underneath. Support maximum capcity of 1900kg. |
| Environmental Space: | Indoor |
| Height: | 120 mm |
| Mechanical Construction Note: | TIP: The base is prepared for installation of stabilisers EDAB101x, which are highly recommended to use on cabinets with sliding servers. |
| Load Capacity: | 1900 kg |
| Finish: | Powder Coated |
| Material: | Steel |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 2x side base profile with a cable entry (with knockout-type blanking panels), 2x cover with cable entry (with knockout-type blanking panels), 1 cover with filter, 1 anti dust brush, fasteners |
| Packaging: | Individually packed. |
| Item # | Width | Depth | Color | Application |
|---|---|---|---|---|
| EDAB2611 | 600 | 1,000 | Gray | E-Series Cabinets |
| EDAB2612 | 600 | 1,000 | Black | E-Series Cabinets |
| EDAB2621 | 600 | 1,200 | Gray | E-Series Cabinets |
| EDAB2622 | 600 | 1,200 | Black | E-Series Cabinets |
| EDAB2681 | 600 | 800 | Gray | E-Series Cabinets |
| EDAB2682 | 600 | 800 | Black | E-Series Cabinets |
| EDAB2811 | 800 | 1,000 | Gray | E-Series Cabinets |
| EDAB2812 | 800 | 1,000 | Black | E-Series Cabinets |
| EDAB2821 | 800 | 1,200 | Gray | E-Series Cabinets |
| EDAB2822 | 800 | 1,200 | Black | E-Series Cabinets |
| EDAB2881 | 800 | 800 | Gray | E-Series Cabinets |
| EDAB2882 | 800 | 800 | Black | E-Series Cabinets |
| Update and Revision: | Revision Number: 0.169 Revision Date: 04-16-2025 |
