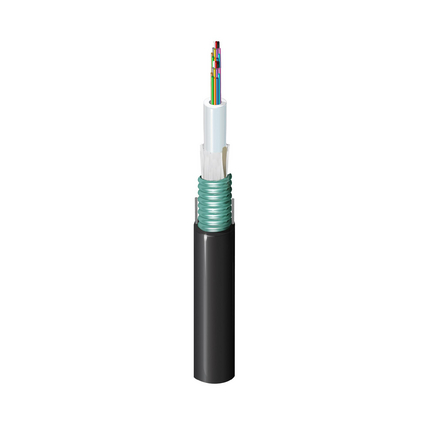

(4)Outdoor optical fiber Central Loose Tube (jelly filled) cable with glass yarns as flexible non-metallic strength member, Corrugated steel tape armor and Single Polyethylene Jacket (black) with two steel wires embeded, 24 Fibers, 50μm OM4(BI).
| Suitable Applications: | For outdoor use in structured (data) wiring systems such as industrial backbone, campus backbone cabling. For outdoor use in networks for industrial, telecom, cable TV and/or broadcast. Easy to install in ducts, tunnels and trenches and/or tubes. Suitable for Direct Burial. |
| Fiber Type: | OM4 |
| Fiber Core Diameter: | 50.0 ± 2.5 µm |
| Armor Type and Material: | CST - Corrugated Steel Tape |
| Jacket Material: | PE - Polyethylene |
| Color: | Black |
| Wavelength | 850 nm | 1300 nm |
|---|---|---|
| Max. Attenuation | 3.0 dB/km | 1 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 3500 MHz.km | 500 MHz.km |
| Table Notes: | Effective Modal Bandwidth: 4700 MHz.km, Numerical Aperture: 0.200 ± 0.015 |
| Min. Bend Radius During Installation: | 20 x OD |
| Max. Tensile Strength During Installation: | 2000 N (450 lbf) |
| Max. Tensile Strength During Operation: | 600 N (130 lbf) |
| Crush Resistance: | ＜300 N/cm |
| Bulk Cable Weight: | 90 kg/km (60 lbs/1000ft) |
| Operating Temperature Range: | - 40°C To + 70°C |
| Environmental Suitability: | Outdoor |
| ISO/IEC Compliance: | IEC 60793, IEC 60794-1 |
| European Directive Compliance: | EU Directive 2011/65/EU (RoHS 2) |
| Update and Revision: | Revision Number: 0.12 Revision Date: 02-28-2025 |
