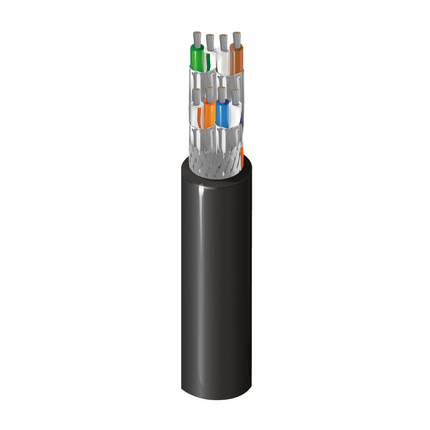

(4)CAT.7, 4 Pair AWG 24 Tinned Copper - Stranded, XLP/XLPO, FMPE insulation, S/FTP - Overall Braid + Foil shielding,Crosslinked e-beam LSZH / FRNC jacket
| Suitable Applications: | Ethernet Cat 7 Cable for use as a backbone for railway vehicles and enables a reliable link to all connected systems and devices. This cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305 and EN 45545-2. |
| Size | Stranding | Material | No. of Pairs | No. of Elements |
|---|---|---|---|---|
| 24 AWG | Stranded | TC - Tinned Copper | 4 | 8 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PO - Polyolefin (Foam) | 1.45 mm (0.0571 in) | 1. Blue&White/Blue, 2. Orange&White/Orange, 3. Green&White/Green, 4. Brown&White/Brown | eBeam Cross-Linked |
| Description |
|---|
| 4 pairs twisted together |
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Individual Shielded Pair | Tape | Bi-Laminate (Alum+Poly) | 100% |
| Shield Type | Material | Coverage |
|---|---|---|
| Braid | Tinned Copper (TC) | 80% |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
| Overall Cable Diameter (Nominal): | 8.1 mm (0.32 in) |
| Max. Conductor DCR | Max. Mutual Capacitance | Max. Capacitance Unbalance | Nom. Characteristic Impedance |
|---|---|---|---|
| 95 Ohm/km (29 Ohm/1000ft) | 56 pF/m (17 pF/ft) | 160 pF/100m | 100 Ohm |
| Max. Delay Skew | Nom. Velocity of Prop. |
|---|---|
| 25 ns/100m | 76% |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] | Min. NEXT [dB] | Min. PSNEXT [dB] | Min. ACR [dB] | Min. PSACR [dB] | Min. ACRF (ELFEXT) [dB] | Min. PSACRF (PSELFEXT) [dB] | Min. RL (Return Loss) [dB] | Min. TCL [dB] | Min. ELTCTL [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.0 | 2.9 | 80.0 | 77.0 | 76.0 | 73.0 | 78.0 | 75.0 | 20.0 | 40.0 | 35.0 |
| 4.0 | 5.6 | 80.0 | 77.0 | 74.3 | 71.3 | 78.0 | 75.0 | 23.0 | 34.0 | 23.0 |
| 10.0 | 8.8 | 80.0 | 77.0 | 72.1 | 69.1 | 75.3 | 72.3 | 25.0 | 30.0 | 15.0 |
| 16.0 | 11.1 | 80.0 | 77.0 | 70.6 | 67.6 | 71.2 | 68.2 | 25.0 | 28.0 | 10.9 |
| 31.3 | 15.6 | 80.0 | 77.0 | 67.6 | 64.6 | 65.4 | 62.4 | 23.6 | 25.1 | 5.1 |
| 62.5 | 22.3 | 75.5 | 72.5 | 60.6 | 57.6 | 59.4 | 56.4 | 21.5 | 22.0 | |
| 100.0 | 28.5 | 72.4 | 69.4 | 53.4 | 50.4 | 55.3 | 52.3 | 20.1 | 20.0 | |
| 300.0 | 51.3 | 65.2 | 62.2 | 31.1 | 28.1 | 45.8 | 42.8 | 17.3 | ||
| 600.0 | 75.1 | 60.7 | 57.7 | 10.6 | 7.6 | 39.7 | 36.7 | 17.3 |
| Transfer Impedance Class: | Grade 1 |
| Table Notes: | IEC 61156-6 |
| Voltage Rating |
|---|
| 72 V DC |
| UL Temperature |
|---|
| -40°C to +90°C |
| Stationary Min. | Installation Min. |
|---|---|
| 32 mm (1.3 in) | 64 mm (2.5 in) |
| Bulk Cable Weight: | 83 kg/km (56 lbs/1000ft) |
| Environmental Suitability: | Indoor, Outdoor, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-2-25 |
| IEEE Compliance: | IEEE 802.3bt Type 1, Type 2, Type 3, Type 4 |
| Data Category: | Category 7 |
| ISO/IEC Compliance: | ISO/IEC 11801-1 |
| CENELEC Compliance: | EN 45545-2, Segregation class according EN50174-2 = d |
| European Halogen Free Standards: | IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance: | EU CE Mark |
| Update and Revision: | Revision Number: 0.17 Revision Date: 05-26-2025 |
