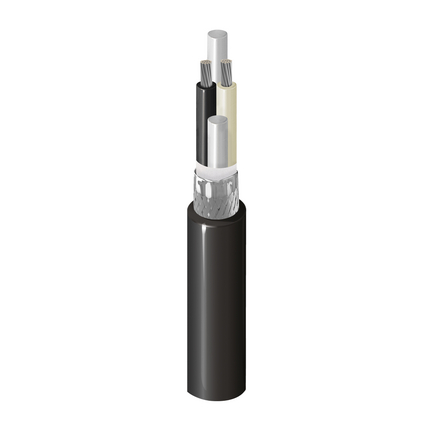

(4)2C, 0.75 stranded tinned copper conductors, XL-Foam PE insulation ,shielded, XL-LSZH outer jacket
| Suitable Applications: | WTB (wire train bus) data cable for fixed and protected installations inside of rail vehicles. This cable is applied for digital signal transmission with good transmission rate at the high frequencies. It is suitable for wiring of the components of communication network (TCN) over the entire trainset. This cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305, EN 45545-2, and TJ/CL-313. |
| Size | Material | No. of Elements | Notes |
|---|---|---|---|
| 0.75 mm² | TC - Tinned Copper | 2 | Nom. Conductor Stranding 19/0.22 mm |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene (Foam) | 2.65 mm (0.104 in) | Black and White |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 90% |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
| Overall Cable Diameter (Nominal): | 8.25 mm (0.325 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| Max. 26.7 Ohm/km | 120 Ohm |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] |
|---|---|
| 1 | 10 |
| 2 | 14 |
| UL Voltage Rating |
|---|
| 300 V |
| Operating |
|---|
| -40°C to +90°C |
| Installation Min. |
|---|
| 4×D |
| Environmental Suitability: | Indoor, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-25 |
| ISO/IEC Compliance: | IEC 61034-2 - Smoke Density Min Transmittance = 70% |
| CENELEC Compliance: | EN 45545-2 |
| European Halogen Free Standards: | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance: | EU CE Mark |
| Notes: | Capacitance(1MHz) Core to Core: 65 pF/m (Max.) |
| Update and Revision: | Revision Number: 0.15 Revision Date: 05-26-2025 |
