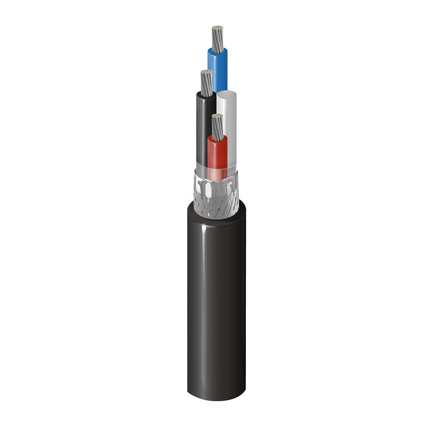

(4)2CX0.5 mm2 + 1CX0.5mm2 Stranded Tinned Copper Conductors, Foam Polyolefin and Polyolefin insulation, Shield and XL-LSZH Sheath
| Suitable Applications: | RS485 data cable for fixed and protected installations inside and outside of rail vehicles. This cable is applied for digital signal transmission with good transmission rate at the high frequencies. It is suitable for wiring of the components in the train communication network (TCN) inside the car and coach. This cable meets the requirements of the relevant parts of international railway standards like DIN 5510-2, EN 50153, EN 50155, EN 50305, EN 45545-2, and TJ/CL-313. |
| Size | Stranding | Material | No. of Elements |
|---|---|---|---|
| 0.5 mm² | 19x0.18 mm | TC - Tinned Copper | 3 |
| Material | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|
| PO - Polyolefin (Foam) | 2.4 mm (0.094 in) | Blue and Red | Signal Core |
| PO - Polyolefin | 1.45 mm (0.0571 in) | Black | Power |
| PO - Polyolefin | 1.45 mm (0.0571 in) | Natural | Filler |
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 75% |
| Material |
|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset) |
| Overall Cable Diameter (Nominal): | 7.14 mm (0.281 in) |
| Max. Conductor DCR | Nom. Characteristic Impedance |
|---|---|
| Max. 40.1 Ohm/km | 120 Ohm |
| Frequency [MHz] | Max. Insertion Loss (Attenuation) [dB/100m] |
|---|---|
| 1.5 | 1.5 |
| 3 | 3 |
| UL Voltage Rating |
|---|
| 300 V |
| Operating |
|---|
| -40°C to +85°C |
| Installation Min. |
|---|
| 5×D |
| Environmental Suitability: | Indoor, Oil Resistance |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-25 |
| ISO/IEC Compliance: | IEC 61034-2 - Smoke Density Min Transmittance = 70% |
| CENELEC Compliance: | EN 45545-2 |
| European Halogen Free Standards: | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 10 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance: | EU CE Mark |
| Notes: | Capacitance:Core to Core: 46 nF/km (Max.), Core to Shield: 80 nF/km (Max.) |
| Update and Revision: | Revision Number: 0.19 Revision Date: 05-26-2025 |
| Item # | Color | Length |
|---|---|---|
| BA43103 010305M | Black | 305 m |
