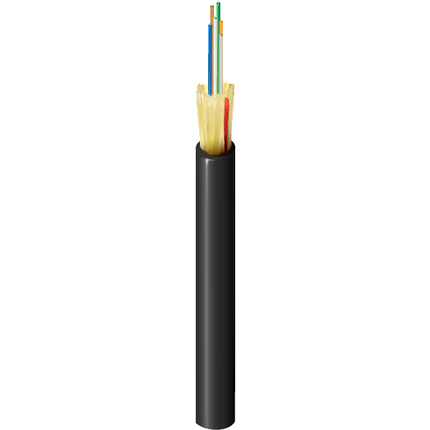

(109)FiberExpress Tactical Cable, 6-Fiber, OS2, with Black Jacket, Small & Lightweight, Ideal for repeated deployment and retrieval cycles, superior crush resistance.
| Construction Type: | Tactical |
| Suitable Applications: | Outdoor |
| Fiber Type | Fiber Count |
|---|---|
| OS2 | 6 |
| Fiber Color Coding: | TIA-598-D |
| Buffer Material | Buffer Diameter |
|---|---|
| Thermoplastic | 900 +35um/-50um |
| Bulk Cable Weight: | 22 lbs/1000ft |
| Number of Jackets: | Single Jacket |
| Material | Nominal Diameter |
|---|---|
| PUR - Polyurethane | 0.24 |
| Color: | Black |
| Number of Ripcords: | 1 |
| Max. Attenuation at 1310 nm: | 0.50 dB/km |
| Max. Attenuation at 1550 nm: | 0.50 dB/km |
| Wavelength: | 1310/1550 |
| 10 Gigabit Ethernet Performance: | 10,000/40,000 |
| 1 Gigabit Ethernet Performance: | 5000/- |
| Description | Requirement/Value |
|---|---|
| Cable Min. Bend Radius Installation (Short Term) | 20x |
| Cable Min. Bend Radius Operation (Long Term) | 10x |
| Cable Max. Tensile Strength Installation (Short Term) | 330 N (74 lbf) |
| Cable Max. Tensile Strength Operation (Long Term) | 150 N (34 lbf) |
| Operating Temperature Range: | -46C to +85C |
| Installation Temperature Range: | -55°C To +85°C |
| Storage Temperature Range: | -70°C To +85°C |
| RoHS: | Yes |
| Item # | Color | Put-Up Type | UPC |
|---|---|---|---|
| B96567 | Black | Reel | 612825357803 |
| Update and Revision: | Revision Number: 0.180 Revision Date: 11-09-2022 |
