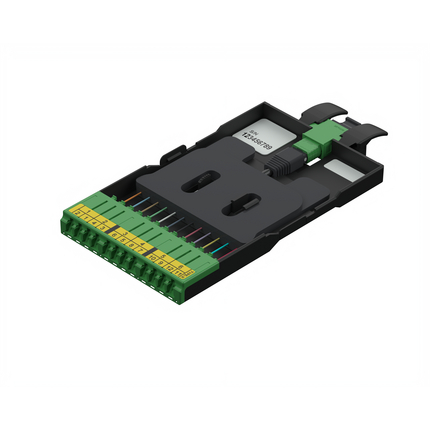

(4)FX DCX FRAME, OS2, 06 PORTS, LC DUPLEX/APC, MPO-12 (FEMALE), TYPE-X PAIR-WISE FLIP, GREEN ADAPTERS
| Environmental Space: | Indoor |
| Suitable Applications: | DCX, Data Centers, Central Equipment Room |
| Weight: | 0.156 |
| Overall Height: | 0.5 |
| Overall Width: | 3.4 |
| Overall Length: | 6.8 in |
| Max Capacity: | 12 Fibers |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -10°C to +75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Frame Assembly | Polycarbonate | Black (Frame), Green (Front Block) | |
| Front Connector Body | Plastic - UL94V-0 | Green | LC Duplex |
| Rear Connector/ Adapter | Plastic - UL94V-0 | Green | MPO Female |
| Fan-Out Routing Plate | Polypropylene | Black |
| Description | Total Insertion Loss | Total Return Loss |
|---|---|---|
| OS2-APC | 0.6 dB | -60 dB |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | DCX,Frames Modules & Patch Panels |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Notes: | For more information, please refer to our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.4 Revision Date: 09-10-2025 |
