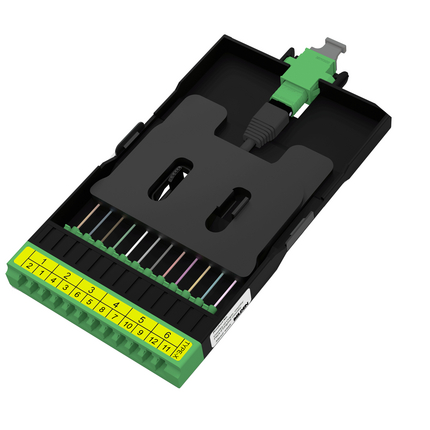

(4)FX DCX FRAME, OS2, 06 PORTS, LC DUPLEX/APC, MPO-12 (FEMALE),TYPE-X PAIR-WISE FLIP,GREEN ADAPTERS
| Environmental Space: | Indoor |
| Suitable Applications: | DCX, Data Centers, Central Equipment Room |
| Fiber Type |
|---|
| OS2 |
| Weight: | 0.156 lbs. |
| Height: | 0.5 in |
| Width: | 3.4 in |
| Length: | 6.8 in |
| Max Capacity: | 12 Fibers |
| Operating Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
| Description | Material | Color | Type |
|---|---|---|---|
| Adapter Frame Assembly | Polycarbonate | Black (Frame), Green (Front Block) | |
| Rear Connector/ Adapter | Plastic - UL94V-0 | Green | MPO Female |
| Front Connector | Plastic - UL94V-0 | Green | LC-Keyed |
| Fan-Out Routing Plate | Polypropylene | Black |
| Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|
| MPO-12 Female | 0.35 dB | -60 dB |
| LC Duplex/APC | 0.25 dB | -65 dB |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | DCX,Frames Modules & Patch Panels |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Notes: | For additional information about this product, please contact our Technical Support group (ibdn.ts@belden.com) or your local sales representative. |
| Update and Revision: | Revision Number: 0.8 Revision Date: 06-23-2025 |
