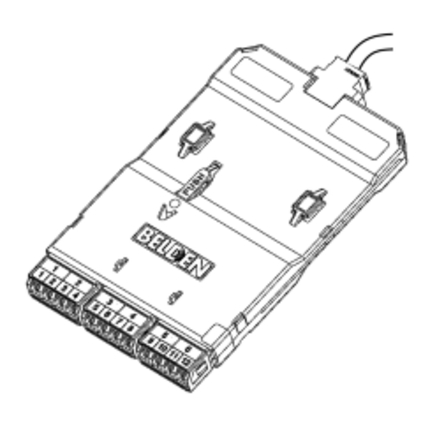

(4)FX DCX STUB TRUNK, OS2, 144 FIBERS, PRE-TERM 12F CASSETTES (LC/UPC), (JACKETED x 1.0M x IN-LINE) - OPEN (250UM), OFNP, FLEXIBLE RIBBON, TYPE-A, 50 M, YELLOW JACKET
| Environmental Space: | Indoor |
| Suitable Applications: | Optical Distribution Frame, Data Centers, Central Equipment Room |
| Fiber Type |
|---|
| OS2 |
| Height: | 0.5 in |
| Width: | 3.38 in |
| Length: | 5.87 in |
| Front Connection: | Static |
| Operating Temperature Range: | -10 to 60°C |
| Storage Temperature Range: | -10 to 75°C |
| Element | Description | Material | Color |
|---|---|---|---|
| Zirconia-Ceramic | Adapter Sleve Material | Zirconia-Ceramic | |
| Plastic - UL94V-0 | Front Connector Body | Plastic - UL94V-0 | Blue |
| Plastic - UL94V-0 | Cassette Assembly | Plastic - UL94V-0 | Black |
| Description | Connector Type | Max. Insertion Loss | Min. Return Loss |
|---|---|---|---|
| Patch Side | LC Duplex | 0.25 dB | -55 dB |
| Trunk Side | Open |
| Related Parts: | DCX Frame Module & Patch Pannel |
| Packaging: | Individually packaged in a plastic shell, Shipped in cardboard box |
| Update and Revision: | Revision Number: 0.4 Revision Date: 06-23-2025 |
