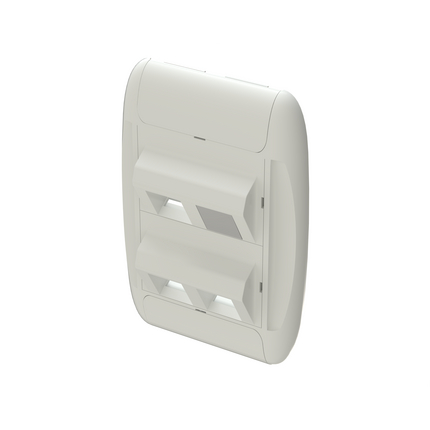

(4)MediaFlex Faceplate Kit KeyConnect 4-Port, Angled, Single-Gang, with 2 clear windows, Elec. White
| Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400 and 1200 |
| Overall Height: | 4.5 in |
| Overall Width: | 3.020 in |
| Overall Depth: | 0.455 in |
| Front Connection: | Angled |
| Packaging: | Individually packaged in a plastic bag. |
| Weight: | 0.102 lbs |
| Description | Material |
|---|---|
| Faceplate | Plastic - UL94V-0 |
| Insert | Plastic - UL94V-0 |
| Max Capacity: | 4 ports |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Connector System Compatibility: | Mediaflex |
| Connector/Hardware Retention: | 20 lbs |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | Bi-national Standard Listed |
| Related Parts: | Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks and KeyConnect Multimedia Modules |
| Included Parts: | Clear windows, papers, 6-32 screws, 2-port angled insert, blank, installation guide |
| Notes: | For proper installation refer to Installation Guide PX102063 included with the product or visit our web site at http://www.belden.com |
| Update and Revision: | Revision Number: 0.4 Revision Date: 04-28-2026 |
