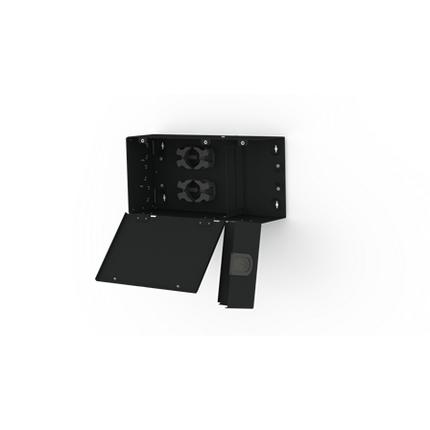

(4)Zone Distribution Box, 2 FX Strip Ports, Black (Empty)
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 6.960 lbs |
| Overall Height: | 7.25 in |
| Overall Width: | 4.54 in |
| Overall Length: | 14.83 in |
| Max Capacity: | 2 Strips; up to 12 Fibers (SC, SC Duplex, ST), 24 Fibers (LC Duplex) or 12 Copper Keyconnect |
| Operating Temperature Range: | -10°C To +60°C |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material | Color |
|---|---|---|
| Panel | Steel | Black |
| Left and Right Door | Steel | Black |
| Strip Bracket | Steel | Black |
| Grommet | Elastomer | Black |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | c(UL)us Listed |
| Included Parts: | 4x Spools |
| Related Parts: | FX Patch Strips |
| Packaging: | Individually packaged in a cardboard box. |
| Update and Revision: | Revision Number: 0.9 Revision Date: 04-02-2026 |
