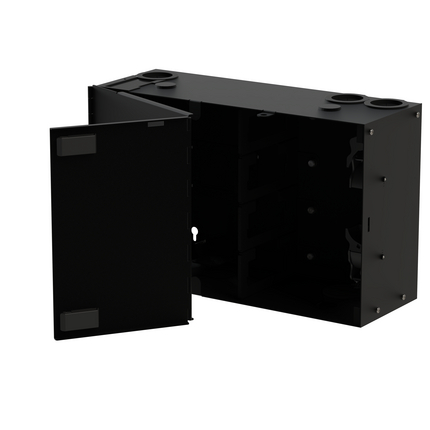

(4)FiberExpress UHD Wall Mount Patch Panel, Empty, Black
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
| Weight: | 15.68 lbs |
| Overall Height: | 11.77 in |
| Overall Width: | 18.61 in |
| Overall Length: | 7.49 in |
| Max Capacity: | 4 Cassettes; 4 Frames; 144 Fibers (LC Duplex); 48 Fibers (SC, SC Duplex, ST); 4 FXU Fusion Trays, 8-inch (AX103912) |
| Operating Temperature Range: | -10°C To +60°C |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material | Color |
|---|---|---|
| Wall Mount | Steel | Black |
| Removable Dust Cover | Steel | Black |
| Grommet | Elastomer | Black |
| FX Ultra HD Spool | Plastic | Black |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 1x I.D. label; 1x Management Spool; 1x Stencil; 4x Wood Screws; 1x Velcro Cable Tie; 1x Short Wing Lock; 1x Worm Drive Clamp #16; 1x Elastic Cable Tie; 4x Self-Locking Cable Ties; 1x Installation Guide |
| Related Parts: | FiberExpress UHD Frames, Cassettes, Bezels, Trays |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For proper installation refer to Installation Guide PX106311 included with the product |
| Update and Revision: | Revision Number: 0.14 Revision Date: 03-30-2026 |
