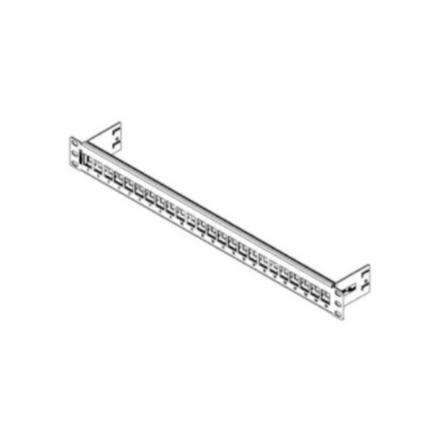

(4)KeyConnect Shielded Patch Panel, 24-port, 1U, Black (Empty)
| Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400 and 1200 |
| Height: | 1.720 in |
| Width: | 19.000 in |
| Depth: | 2.690 in |
| Port Count: | 24 Port |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a cardboard box. |
| Weight: | 2.200 lbs |
| Description | Material |
|---|---|
| Panel | Steel |
| Max Capacity: | 24 connectors |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Environmental Space: | Indoor |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Related Parts: | Compatible with Shielded 10GX, CAT6 and CAT5E KeyConnect Modular Jacks |
| Included Parts: | 4 Screws (10x32); 4 Screws (12x24);1 Installation Guide, 1 Ground Wire 12AWG Kit |
| Update and Revision: | Revision Number: 0.10 Revision Date: 07-16-2025 |
