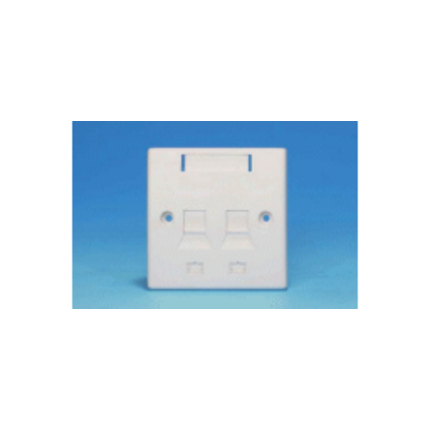

(4)KeyConnect Euro Faceplate 2-Port with Shutter, with ID Window
| Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400, 1200 |
| Overall Height: | 3.15 in |
| Overall Width: | 3.15 in |
| Depth: | 0.4 in |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a plastic bag. |
| Weight: | 0.071 lbs |
| Description | Material |
|---|---|
| Plate | Plastic - UL94V-0 |
| Max Capacity: | 2-port |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Connector/Hardware Retention: | 20 lbs |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | Yes |
| Safety Listing: | c(UL)us Listed |
| Related Parts: | Compatible with KeyConnect-style Modular Jacks 10GX, CAT6+, CAT5E |
| Included Parts: | M3.5x22 screw, carton label, clear window |
| Update and Revision: | Revision Number: 0.16 Revision Date: 10-02-2025 |
