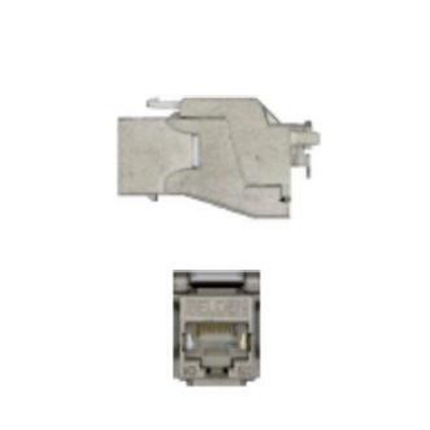

(4)10GX Shielded KeyConnect Modular Jack, Category 6A, RJ45
| Suitable Applications: | IBDN Shielded System 10GX, TIA Screened Category 6A, ISO Class EA, 10GBASE-T |
| Height: | 1.000 in |
| Width: | 0.675 in |
| Depth: | 1.570 in |
| Wiring Scheme: | T568A/B |
| Packaging: | Individually packaged in a plastic bag. |
| Weight: | 0.048 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Phosphor Bronze with 50u inch Gold over Nickel Plating | RJ45 |
| Rear Connection | Phosphor Bronze with Tin Plating over Nickel | IDC |
| Connector Body | Metal |
| Dielectric Strength: | 1,000V RMS @ 60 Hz for 1 minute |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Termination Resistance: | 2.5 mOhm |
| Storage Temperature Range: | -40°C to +75°C |
| Operating Temperature Range: | -10°C to +60°C |
| Footprint/Type: | KeyConnect |
| Tool Compatibility: | Tool Less |
| Plug /Jack Compatibility: | RJ45, RJ11 |
| Termination Front Connection Durability: | 750 cycles |
| Termination Rear Connection Durability: | 20 terminations |
| Connector/Hardware Retention: | 20 lbs |
| Plug/Connector Retention: | 11.250 lbs |
| TIA/EIA Compliance: | Category 6A - TIA 568.C.2, Class EA - ISO/IEC 11801:2002 Amendment 2 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Environmental Space: | Indoor |
| Related Parts: | Wire Cap, 1 cable Tie |
| Notes: | IDC Wire Gauge: 22~24 AWG. Max cable OD 8.55mm (0.336 in.) May not be compatible with all Belden faceplates. Please contact Belden Technical Support for compatibility verification. |
| Update and Revision: | Revision Number: 0.39 Revision Date: 07-21-2025 |
