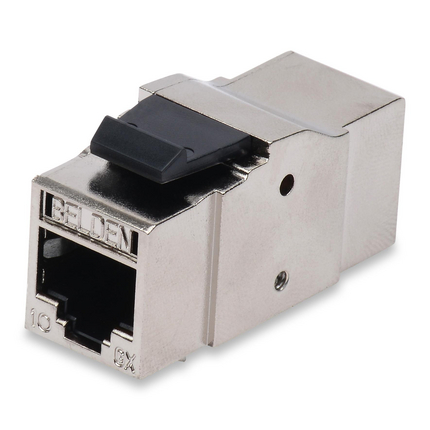

(4)10GX Shielded RJ45 Coupler, Category 6A, KeyConnect, Gray
| Suitable Applications: | BDN Shielded System 10GX, TIA Category 6A, 10GBASE-T, Support Power over Ethernet (up to 100W), Cisco UPOE (up to 60W) and Power over HDBase-T (up to 100W) |
| Height: | 0.889 |
| Width: | 0.638 in |
| Depth: | 1.516 in |
| Wiring Scheme: | T568A/B-T568A/B |
| Weight: | 0.380 lbs |
| Description | Material | Type |
|---|---|---|
| Front Connection | Flexible PCB with 50 µ inch Gold over Nickel | Flexible PCB |
| Rear Connection | Flexible PCB with 50u inch Gold over Nickel | Flexible PCB |
| Connector Body | Metal |
| Current Rating: | 1.500 A |
| Insulation Resistance: | 500 M-Ohm Minimum |
| Max Contact Resistance: | 20 mOhm |
| Installation Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Operating Temperature Range: | -10°C to +60°C |
| Footprint/Type: | KeyConnect |
| Plug /Jack Compatibility: | RJ45 |
| Termination Front Connection: | Mated Connection |
| Termination Front Connection Durability: | 750 cycles |
| Termination Rear Connection: | Mated Connection |
| Termination Rear Connection Durability: | 750 cycles |
| Connector/Hardware Retention: | 20 lbs |
| Data Category: | Category 6A |
| TIA/EIA Compliance: | TIA 568.2-D, Category 6A - ISO/IEC 11801-1 |
| Other Standards: | FCC Part 68, Subpart F, IEC 60603-7 |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Safety Listing: | ACA, c(UL)us Listed |
| Related Parts: | KeyConnect Shielded Modular Patch Panel, 10GX Shielded Patch Cord, 10GX Shielded Pre-Terminated Cable Assembly |
| Update and Revision: | Revision Number: 0.25 Revision Date: 09-02-2025 |
