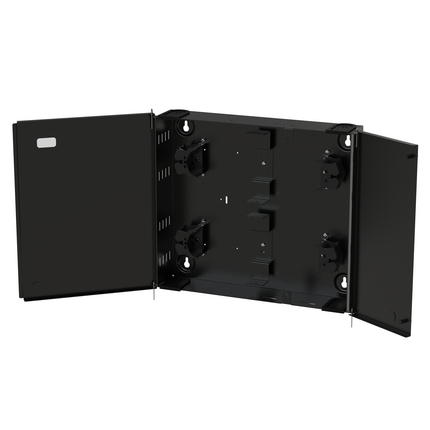

(4)FXU WALL MOUNT SPLICE ENCLOSURE, BLACK
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Height: | 14.394 in |
| Width: | 17.234 in |
| Depth: | 3.378 in |
| Max Capacity: | 4 FXU Fusion Trays, 10-inch (AX103913) |
| Operating Temperature Range: | -10°C To +60°C |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Panel | Steel 16 AWG |
| Left and Right Door | Steel 18 AWG |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Included Parts: | 2 Tray Holders; 4 Spool Base; 4 Spool; 10 m. screw 6-32 x .250"; 4 m. screw 6-32 x .375"; 4 wood screw#10 x 1.00"; Velcro strap 8"; Velcro strap 18"; Tie wrap 4.5"; Tie wrap 5.75" |
| Related Parts: | FiberExpress Ultra Frames, Cassettes, Bezels, Trays |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | For proper installation refer to Installation Guide PX104778 included with the product |
| Update and Revision: | Revision Number: 0.15 Revision Date: 03-27-2025 |
