10GX IDC Block (Rear) - 10GX IDC Rear X-BAR

10GX IDC Block (Rear)-10GX IDC

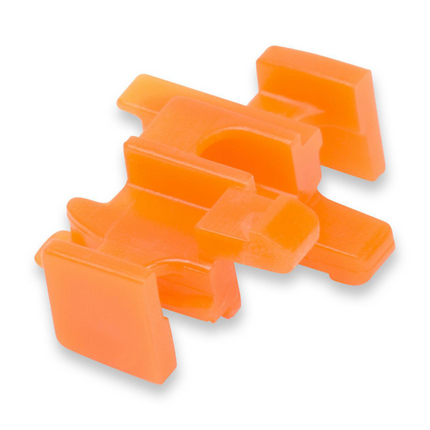

10GX IDC Connecting Block Rear X-Bar, Orange

Product Overview

Environmental Space: Indoor
Suitable Applications: - Compatible with Cross-Connect Application or Consolidation Point Application for use with Belden IBDN Systems 10GX, 4800, 2400 and 1200.

Physical Characteristics (Overall)

Insulation
Nominal Diameter
0.169 mm
Packaging: Packaged 100 units per bag
Weight: 0.01 g

Connectors

Materials
DescriptionMaterial
Rear X-BarLexan

Electrical Characteristics

Inductance
Nominal Inductance
0.169 µH/m

Temperature Range

Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C

Mechanical Characteristics

Footprint/Type: IDC
Dimensions (WxHxD)
WidthHeightDepth
0.680.350.308

Standards

Data Category: Category 6A

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (yyyy-mm-dd): 2008-12-16

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

Safety Listing: UL 1863 and CSA-C22.2

Part Number

Related Parts: 10GX IDC Connecting Block
Variants
Item #Color
AX102680Orange
Date: 2008-12-16
