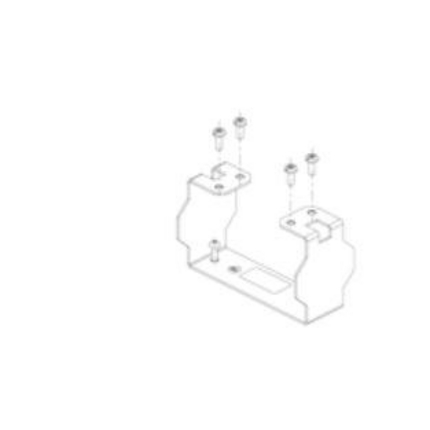

(4)FACEPLATES AND PANELS - GIGABIX CABLE MANAGEMENT RING SPACER
| Suitable Applications: | IBDN System 4800, 3600, 2400, TIA Category 6, ISO Class E, 1000 BASE-T |
| Overall Height: | 3.000 in |
| Overall Width: | 5.000 in |
| Depth: | 2.400 in |
| Packaging: | Individually packaged in a clear plastic bag. |
| Weight: | 0.018 lbs |
| Description | Material |
|---|---|
| Ring | Steel |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| Safety Listing: | c(UL)us Listed |
| Related Parts: | Patch Cord Organizer, Patch Cord Organizer Cover, Horizontal Channel Plate, Gigabix Connectors, Management Ring, Gigabix Patch Cord, Gigabix/Mediaflex Adapter |
| Included Parts: | 2 Wood Screws, 4 Machine Screws, French and English Installation Guide |
| Notes: | For proper installation refer to Installation Guide PX103648 (French or English) included with the product or visit our website at http://www.belden.com |
| Update and Revision: | Revision Number: 0.25 Revision Date: 10-15-2025 |
