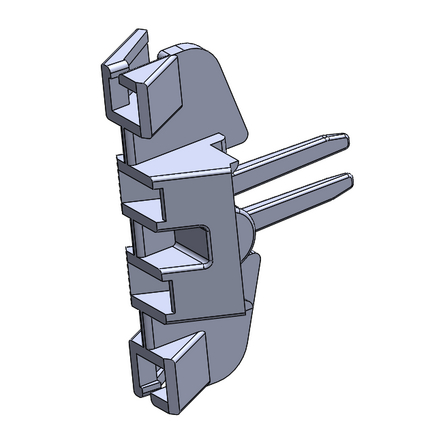

(4)MODULAR CONNECTORS - GIGABIX TERMINATION BAR KIT
| Overall Height: | 0.625 in |
| Overall Width: | 0.374 in |
| Depth: | 0.900 in |
| Packaging: | Packaged 100 units per bag |
| Weight: | 0.010 lbs |
| Description | Material |
|---|---|
| T-Bar | Polycarbonate - UL94V-0 |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Tool Compatibility: | Belden 110 Connecting Tool |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | Compatible with GigaBIX Connectors |
| Included Parts: | 100 T-Bars |
| Notes: | Refer to Installation Guide PX103843, or visit our website at http://www.belden.com |
| Update and Revision: | Revision Number: 0.28 Revision Date: 10-15-2025 |
