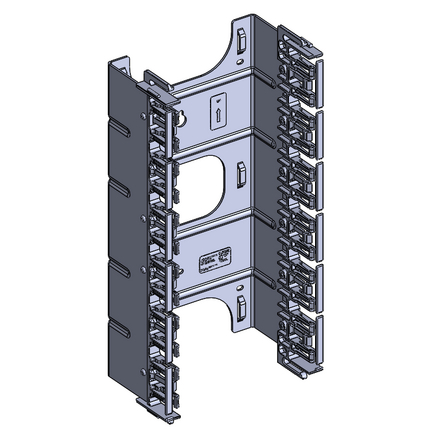

(4)FACEPLATES AND PANEL - 12-CONNECTOR GIGABIX MOUNT (EMPTY), BLACK
| Suitable Applications: | IBDN System 4800, 3600, 2400, TIA Category 6, ISO Class E, 1000BASE-T |
| Overall Height: | 15.281 in |
| Overall Width: | 7.639 in |
| Depth: | 4.527 in |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a cardboard box. |
| Weight: | 10.900 lbs |
| Description | Material |
|---|---|
| Panel | Steel |
| Max Capacity: | 12 GigaBIX Connectors to be ordered separately |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Termination Front Connection: | Yes |
| Termination Rear Connection: | Yes |
| Environmental Space: | Indoor |
| EU Directive 2002/95/EC (RoHS): | Yes |
| Safety Listing: | ACA, Bi-national Standard Listed |
| Related Parts: | GigaBIX Connectors, Managament Ring, Managament Module, Patchcord Organizer, Horizontal channel plate, GigaBIX Patchcord, GigaBIX/MediaFlex Adapter |
| Included Parts: | 2 Wood Screws |
| Notes: | Refer to Installation Guide PX101814 (English) and PX101813 (French) or visit our website at http://www.belden.com |
| Update and Revision: | Revision Number: 0.29 Revision Date: 10-15-2025 |
