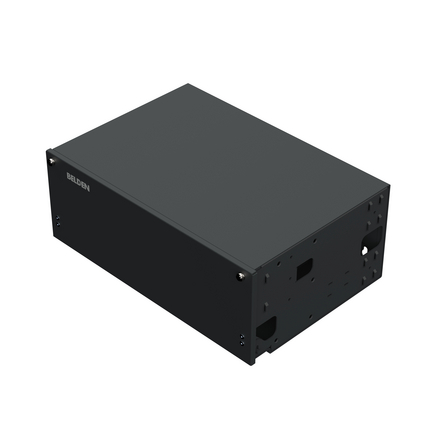

(4)FiberExpress Patch Panel, Rack Mount, 4U, Black.
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room |
| Weight: | 26 lbs |
| Height: | 6.90 in |
| Width: | 19.00 in |
| Length: | 12.00 in |
| Max Capacity: | 192 Terminations (LC) : Four 8-inch Splice Tray Kit, Four 12-inch Splice Tray Kit |
| Termination Type: | Front Sliding Drawer |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Description | Material |
|---|---|
| Panel | Steel |
| Cover | Plastic |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| MII Order #39 (China RoHS): | EUP 50 |
| Related Parts: | FiberExpress Adapter Strips, Fiber Splice Organizer Trays and Kits |
| Packaging: | Individually packaged in a cardboard box. |
| Notes: | Hardware Kit contains: Screws (12-24), Screws (10-32); Screws & Lock Nut (1/4-20); Cable Ties, Tie Wraps, Kurly Locks, Retaining Ring. |
| Update and Revision: | Revision Number: 0.17 Revision Date: 03-06-2025 |
