ASBV 8/LED 5-255 - Passive Distribution Boxes

Product Hierarchy

ASB with FIXCON-connector, 8 ports, LED, double I/O per port, STL255

Compare

Data Sheet

Brand:	Belden

Product Sub Family:	Classic

Item Description:	ASBV 8/LED 5-255

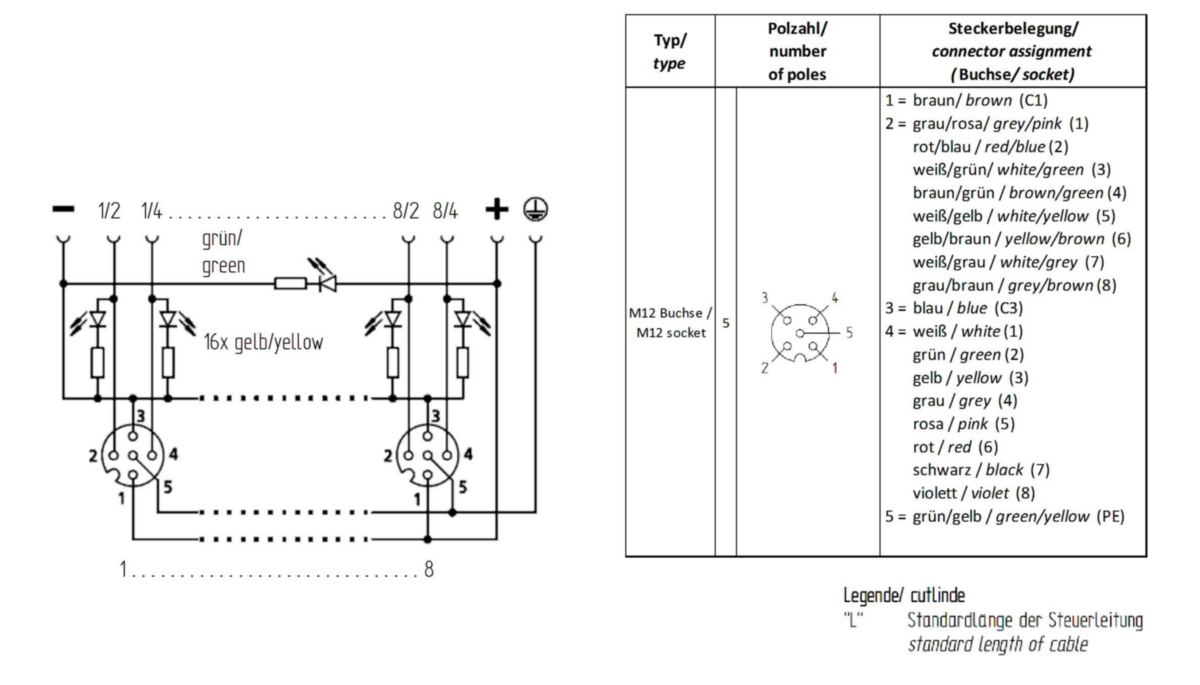

I/O Connection:	M12, 5-poles, A-coded

Number of Ports:	8

I/O Wiring Configuration:	double I/O per port

Control Cable Interface:	Open End

General Data

Housing Material:	Plastic, TPU

Housing Color:	Orange

Protection Degree / IP Rating**:	IP67

Potted:	Yes

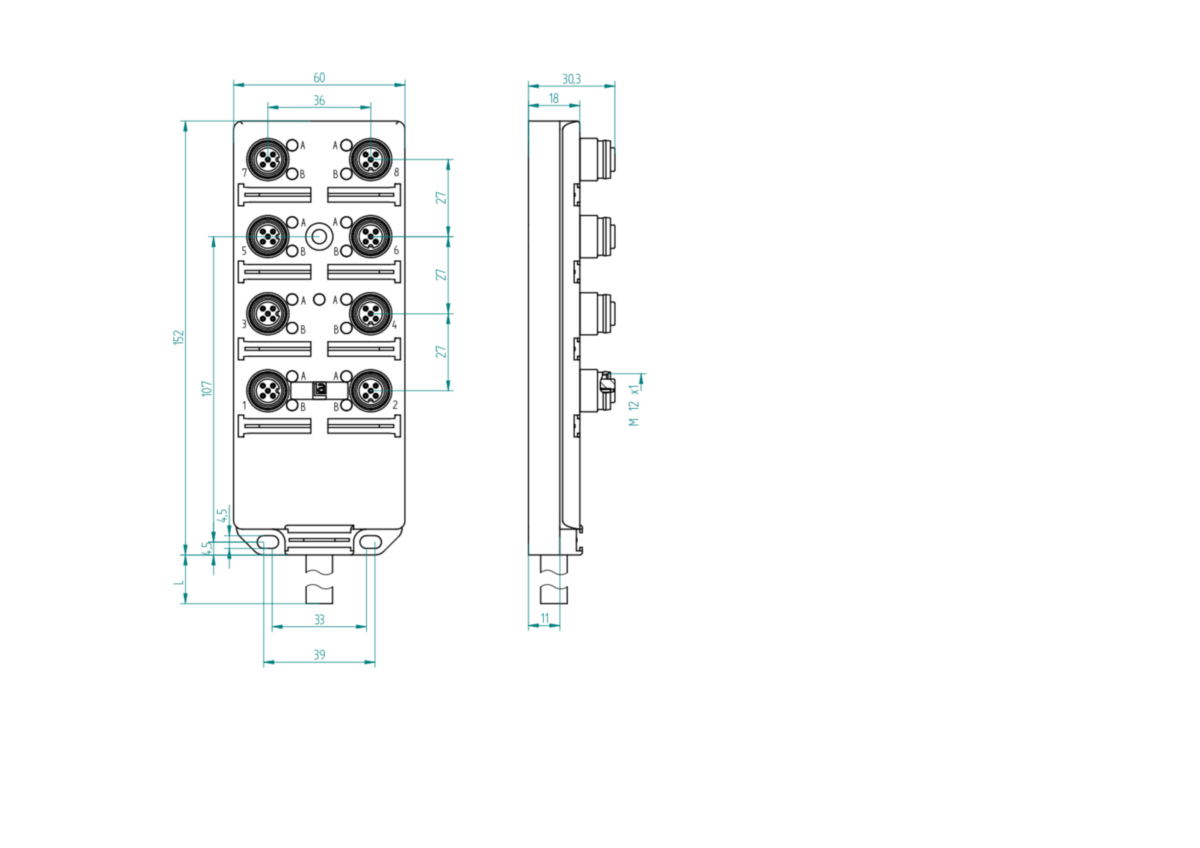

Dimensions (W x H x D):	60 mm x 30,3 mm x 152 mm

Ambient Temperature (Operation)*:	-15 °C to 80 °C

Pollution Degree:	3 acc. to EN 60664-1, VDE 0110-1

Contact Base Material:	CuZn

Contact Bearer Material:	PA

O-Ring Material:	FKM

Fastening Torque (I/O Connection):	M12: 0.5 Nm

Power Supply

Status Indicator:	LED green

Actuator Supply Voltage (Nominal):	24 V DC (SELV/PELV)

Actuator Supply Voltage (Range):	10 V DC to 30 V DC

Digital Input Channels

Input Wiring:	2-, 3-, 4-wire

Sensor Type:	PNP

Digital Output Channels

Output Wiring:	2-, 3-wire

Galvanically Isolated:	No

Port Channels

Current per Connector:	max. 1,5 A

Current per Module:	max. 1,5 A

Status Indicator (Port):	Status Indicator (Port)

Safety & Environmental Compliance

CE:	Yes

RoHS Compliant:	Yes

China RoHS-Compliant:	Yes

Approvals

UL:	cULus Listed, UL 508

UL-File:	E104696

CSA:	Yes, via UL

Notes

Protection Degree / IP Rating Note:	** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.

System Power Supply Connection Note:	*do not connect / disconnect under voltage!

Variants

Item #	Item Description
11170	ASBV 8/LED 5-255/5 M

Update and Revision:	Revision Number: 0.39 Revision Date: 04-08-2022
