ASBS 2 M12-5S F - T-Splitter Sensor/Actuator M12 to M12, IP67, PUR orange body, 5-pin M12 Male to 4-pin M12 female straight connection, 50 V AC / 60 V DC, UL: 30 V AC/DC, 4 A




T-Splitter Sensor/Actuator M12 to M12, IP67, PUR orange body, 5-pin M12 Male to 4-pin M12 female straight connection, fixed curled nuts to relief installation effort, 2 x M4 mounting holes with distance pins to mounting plate, 50 V AC / 60 V DC, UL: 30 V AC/DC, 4 A

Product Description

Brand: Lumberg Automation
Part Number: 27764
Connector Type: T-Splitter
I/O Connection: M12 A-coded Male to M12 A-coded Female

General Data

Housing material / Molded body: PUR
Housing Color: Orange
Protection Degree / IP Rating**: IP67
Ambient Temperature (Operation)*: -25°C to +90°C (notice derating)

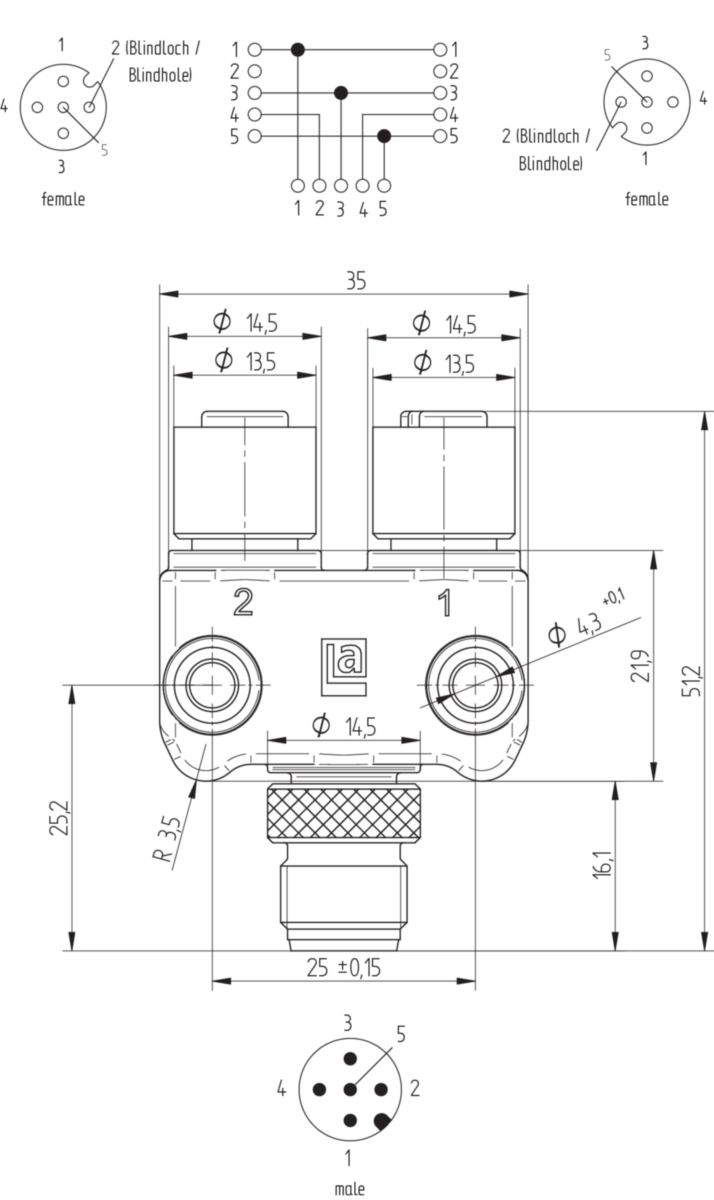

Dimensions (W x H x D): 35 mm x 21,5 mm (16 mm wo distance pins) x 51,2 mm
Weight: 35,2 g
O-Ring Material: FKM
Contact Bearer Material: PUR
Contact Bearer Color: Orange (male side), Black (female side)
Attachment Type: Screw-Locking
Contact Base Material: CuZn
Contact Plating: Ni/Au
Coupling screw: CuZn, nickel-plated
Coupling nut material: CuZn, nickel-plated
Mating Cycles: ≤ 100

Electrical Data

Rated Voltage: 50 V AC / 60 V DC
Rated Voltage (UL): 30 V AC/DC
Rated Current*: 4 A
Rated Impulse Voltage: 1,5 kV
Pollution Degree: 3 acc. to DIN EN 60664-1 (VDE 0110-1)
Contact Resistance: ≤ 5 mOhm

Approvals

UL: cURus

Safety & Environmental Compliance

RoHS Compliant: Yes
Update and Revision: Revision Number: 0.32 Revision Date: 03-11-2021
