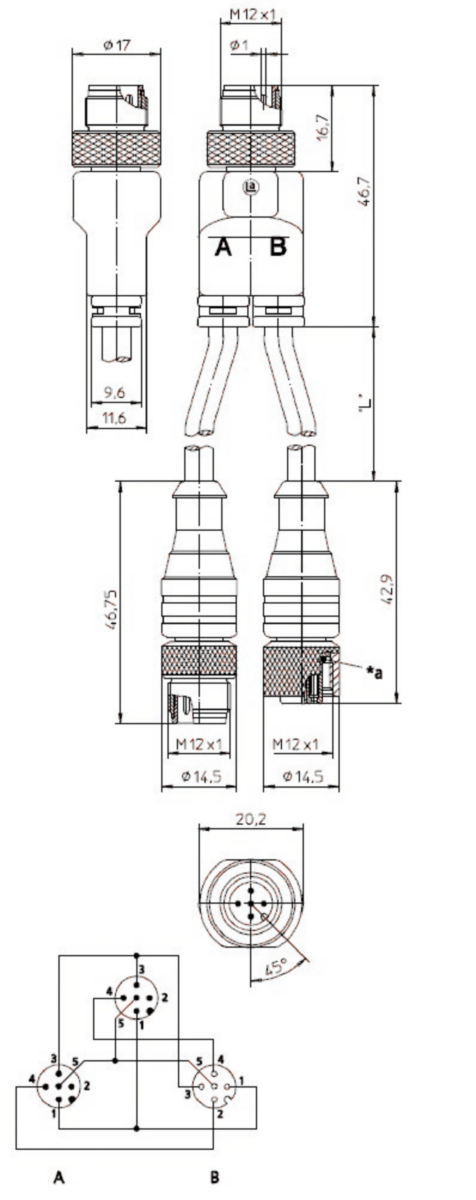

Actuator/sensor cordset, M12 Duo-M12, M12: male with M12 male and M12 female , self-locking screw coupling
| Product Family: | Y-Connectors |
| Brand: | Lumberg Automation |
| Voltage Rating: | 60 V |
| Rated Impulse Voltage: | 1,5 kV |
| Current Rating: | 4 A |
| Side 1 Product Sub Family: | M12 Splitter |
| Side 1 Type of Contact/Gender: | male / female |
| Attachment Type: | Self-locking |
| Number of Pins: | 5 |
| Side 1 Contact Resistance: | ≤ 5 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Ambient Temperature (Operation)*: | -25°C to +80°C (notice derating) |
| Protection Degree / IP Rating**: | IP 67 / NEMA 6P |
| Side 1 Design Standard: | IEC 61076-2-101 (M12) |
| Side 1 Pollution Degree: | 3 |
| Contact Base Material: | CuZn |
| Side 1 Contact Plating: | Ni/Au |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Orange |
| O-Ring Material: | FKM |
| Cable Number: | 226 |
| Number of Wires: | 5 |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | Black |
| Cable Diameter D: | 4.6 mm |
| RoHS Compliant: | Yes |
| Product Characteristics: | Drag chain sustainability, Very good resistance to oils, coolants, lubricants as well as emulsions, Very good vibration and shock resistance |
