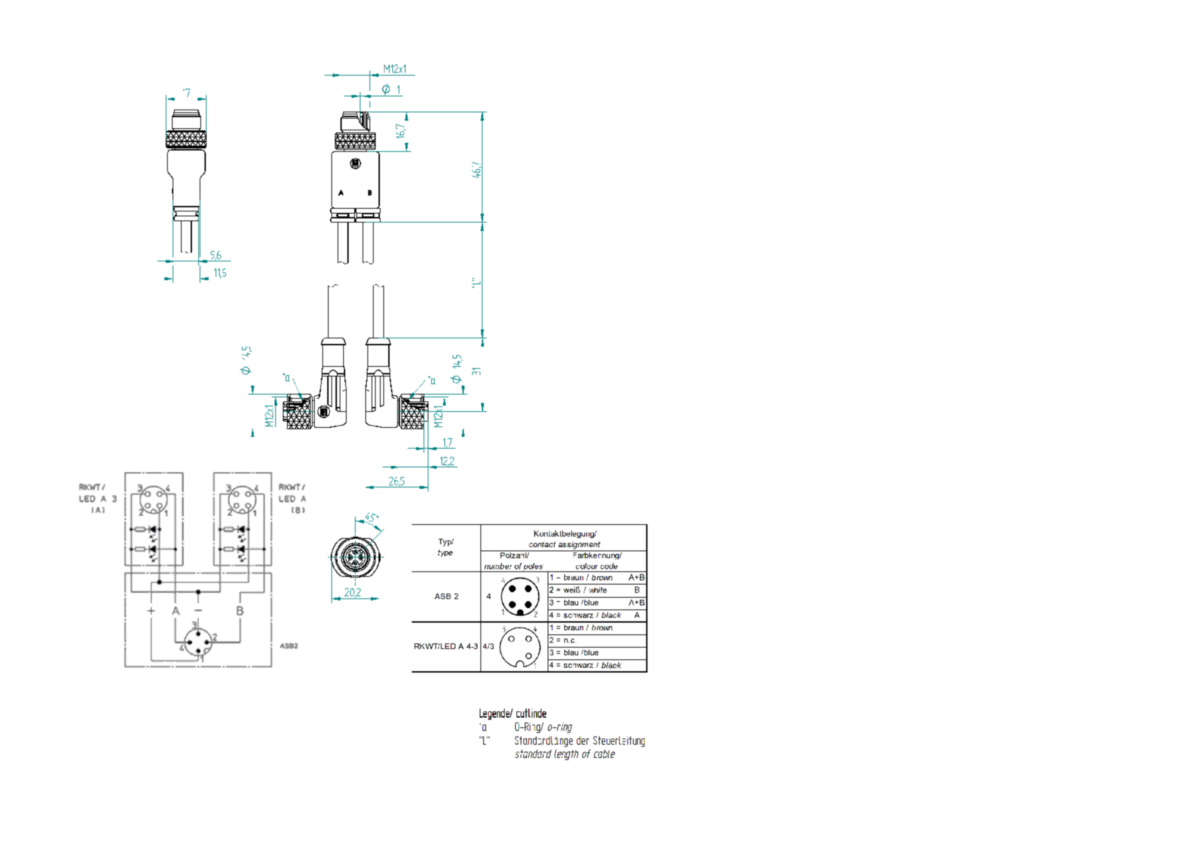

M12 Micro splitter cordset, double- ended, M12 Duo male connector and two M12 female right angle connectors with self-locking threaded joint, black PUR halogen free molded cable (ASBA 2-RKT: with AND logic).
| Product Family: | Sensor / Actuator Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | T-Splitter |
| Voltage Rating: | 32 V |
| Rated Voltage (UL): | 32 V |
| Rated Impulse Voltage: | 1,5 kV |
| Current Rating: | 4 A |
| Side 1 Product Sub Family: | M12 Splitter |
| Side 1 Type of Contact/Gender: | male / female |
| Attachment Type: | Self-locking |
| Number of Pins: | 3 |
| Side 1 Contact Resistance: | ≤ 5 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Ambient Temperature (Operation)*: | -25°C to +80°C (notice derating) |
| Protection Degree / IP Rating**: | IP 67 / NEMA 6P |
| Side 1 Design Standard: | IEC 61076-2-101 (M12) |
| Side 1 Pollution Degree: | 3 |
| Contact Base Material: | CuZn |
| Side 1 Contact Plating: | Ni/Au |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Orange |
| Molded Body Color: | black |
| Housing Color: | orange/ translucent |
| O-Ring Material: | FKM |
| Cable Number: | 224 |
| Number of Wires: | 3 |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | Black |
| Cable Diameter D: | 0.169" |
| RoHS Compliant: | Yes |
| Protection Degree / IP Rating Note: | Only in locked position with it's proper counterparts |
| Product Characteristics: | Drag chain sustainability, Very good resistance to oils, coolants, lubricants as well as emulsions, Very good vibration and shock resistance |
| Item # | Item Description |
|---|---|
| 44138 | ASB 2-RKWT/LED A 4-3-224/5 M |
| 600003060 | ASB 2-RKWT/LED A 4-3-224/1 M |
| 600003061 | ASB 2-RKWT/LED A 4-3-224/2 M |
| 600043589 | ASB 2-RKWT/LED A 4-3-224/1.5M |
