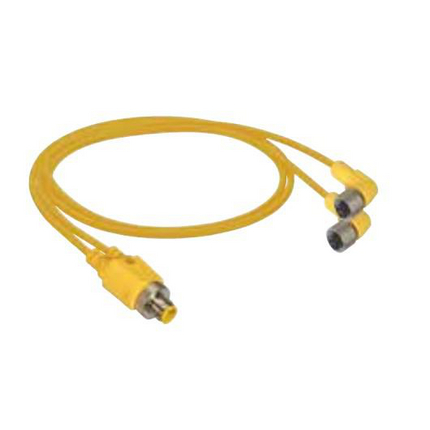

(4)Splitter | M12- Male Straight | #Contacts: 4, A-coded | with two identical M12 - Female Angled, A-coded | #Contacts: 3 | 250 V / 4 A | Cable: Yellow TPE Jacket; 3x0.34 mm² (22 AWG); IEC, cURus 2238
| Product Family: | Sensor / Actuator Connectors |
| Brand: | Lumberg Automation |
| Connector Type: | T-Splitter |
| Rated Voltage: | 250 V |
| Rated Current*: | 4 A |
| Product Sub Family: | M12 Splitter |
| Type of Contact / Gender: | Pin Contact / Male |
| Connector Design: | Straight |
| Attachment Type: | Screw-Locking |
| Number of Pins: | 4 |
| Contact Resistance: | ≤ 5 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | Brass (Cu/Zn) |
| Contact Plating: | Nickel-plated (Ni) |
| Contact Bearer Material: | Polyurethane (PUR) |
| Contact Bearer Color: | Yellow |
| O-Ring Material: | FKM |
| Product Sub Family, Side 2: | M12 Splitter |
| Type of Contact / Gender, Side 2: | Socket / Female x 2 |
| Connector Design, Side 2: | Angled |
| Attachment Type, Side 2: | Screw-Locking |
| Number of Pins, Side 2: | 4 |
| Contact Resistance, Side 2: | ≤ 5 mOhm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Mating Cycles, Side 2: | ≤ 100 |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | Brass (Cu/Zn) |
| Contact Plating, Side 2: | Ni/Au |
| Contact Bearer Material, Side 2: | Polyurethane (PUR) |
| Contact Bearer Color, Side 2: | Black |
| O-Ring Material, Side 2: | FKM |
| RoHS Compliant: | Yes |
| Item # | Item Description | Cable Length |
|---|---|---|
| 600007203 | ASB 2-RKWT 4-3-643/0.6M | 0.6 m |
