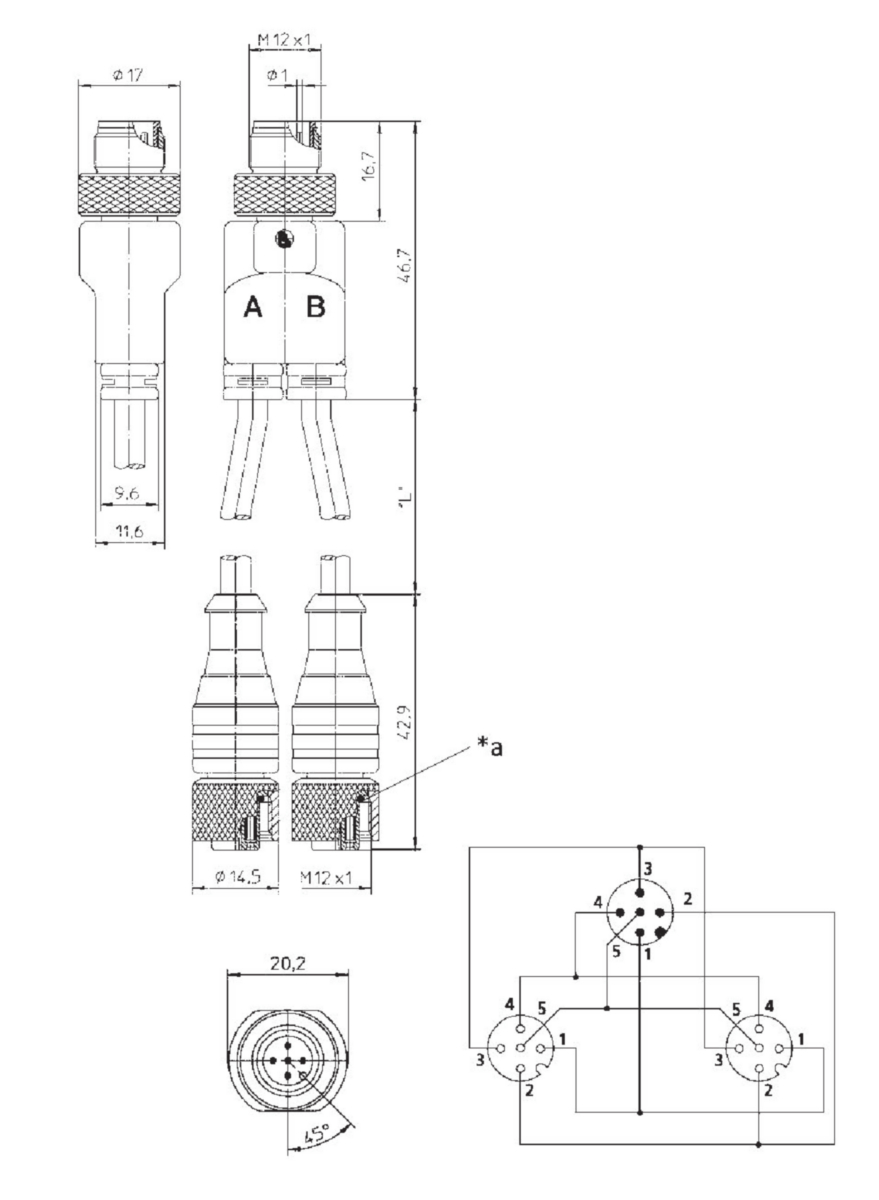

Actuator/sensor cordset, M12 Duo-M12, M12: male, two M12: female, straight, with self-locking screw coupling
| Product Family: | Sensor / Actuator Connectors |
| Brand: | Lumberg Automation |
| Voltage Rating: | 50 V AC / 60 V DC |
| Rated Impulse Voltage: | 1,5 kV |
| Current Rating: | 4 A |
| Side 1 Product Sub Family: | M12 Splitter |
| Side 1 Type of Contact/Gender: | Pin Contact / Male |
| Connector Design: | Straight |
| Attachment Type: | Self-locking |
| Number of Pins: | 5 |
| Coding, Side 1: | A |
| Side 1 Contact Resistance: | ≤ 10 mOhm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Mating Cycles: | ≤ 100 |
| Ambient Temperature (Operation)*: | - 25 °C to +80 °C |
| Protection Degree / IP Rating**: | IP67 |
| Side 1 Design Standard: | IEC 61076-2-101 (M12) |
| Side 1 Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material: | CuZn |
| Side 1 Contact Plating: | Cu/Au |
| Contact Bearer Material: | TPU |
| Contact Bearer Color: | Orange |
| Molded Body Material: | Thermoplastic Polyurethane (TPU) |
| Molded Body Color: | Translucent |
| Housing Color: | orange/ translucent |
| Attachment Material: | Brass (CuZn) |
| Attachment Plating: | Nickel (Ni) |
| O-Ring Material: | FKM |
| Cable Type: | STL 228 |
| Cable Number: | 228 |
| Conductor Size: | 22 AWG |
| Number of Wires: | 4 |
| Cycles (Bending): | ˃ 1 M |
| Cable Jacket Material: | PUR |
| Cable Jacket Color: | Black |
| Cable Diameter D: | 4.6 mm |
| Side 2 Product Sub Family: | M12 Splitter |
| Side 2 Type of Contact/Gender: | Socket / Female |
| Connector Design, Side 2: | Straight |
| Attachment Type, Side 2: | Self-locking |
| Number of Pins, Side 2: | 5 |
| Coding, Side 2: | A |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Mating Cycles, Side 2: | ≤ 100 |
| Ambient Temperature (Operation), Side 2*: | - 25 °C to + 80 °C |
| Protection Degree / IP Rating, Side 2**: | IP67 |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Contact Base Material, Side 2: | Brass (Cu/Zn) |
| Contact Plating, Side 2: | Cu/Au |
| Contact Bearer Material, Side 2: | TPU |
| Contact Bearer Color, Side 2: | Orange |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Attachment Material, Side 2: | Brass (CuZn) |
| Attachment Plating, Side 2: | Nickel (Ni) |
| O-Ring Material, Side 2: | FKM |
| Note, Side 2: | Do not connect or disconnect under load. |
| RoHS Compliant: | Yes |
| Protection Degree / IP Rating Note: | Only in locked position with it's proper counterparts |
| Product Characteristics: | Drag chain sustainability, Very good resistance to oils, coolants, lubricants as well as emulsions, Very good vibration and shock resistance |
| Update and Revision: | Revision Number: 0.38 Revision Date: 10-06-2026 |
