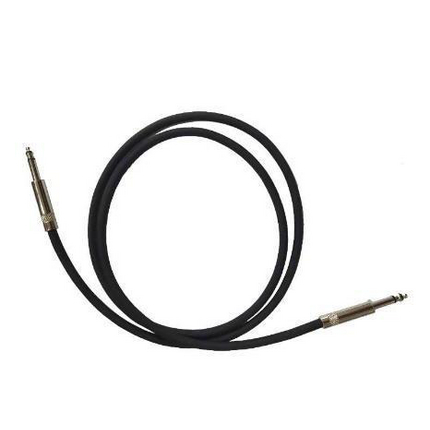

APC1172A66100D6M - 1172A Microphone Cable, Straight Stereo Plug, Audio Patch Cord


1172A Microphone Cable, Straight Stereo Plug, Audio Patch Cord

Physical Characteristics (Overall)

Inner Shield Material
TypeCoverage [%]
Braid95%
Packaging: Product Individually packaged in a transparent polybag.

Connectors

Materials
DescriptionMaterialType
ConnectorNickel contactsLong frame plug

Construction and Dimensions

Cable Type: Star quad microphone cable (1172A)

Temperature Range

Operating Temp Range: -10℃ to +60℃

Mechanical Characteristics

Max. Pull Tension: 37 lbs
Min Bend Radius (Overall Cable): 2 in.

Part Number

Related Parts: Belden’s A PNS1 048 and A PNS10 96 Audio Patch Panel
Variants
Item #ColorLength
APC1172A66100D6MBlack0.6 m
APC1172A66101D2MBlack1.2 m

History

Update and Revision: Revision Number: 0.8 Revision Date: 10-15-2020
