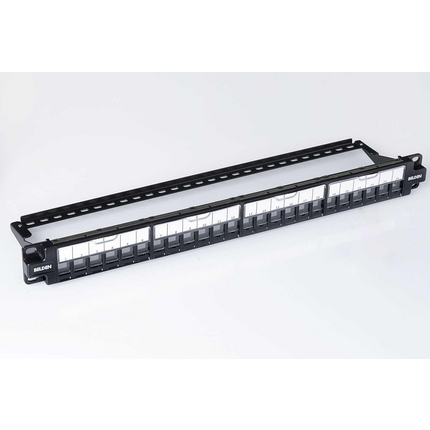

(109)KeyConnect Shielded and Unshielded Patch Panel with Shutter, 24-Port, 1U Flat Style, Black (Empty)
| Suitable Applications: | Compatible with a variety of modules that are suitable for use with Belden IBDN Systems 10GX, 4800, 3600, 2400 and 1200. |
| Height: | 44.5 mm |
| Width: | 482.6 mm |
| Depth: | 110 mm |
| Port Count: | 24 Port |
| Front Connection: | Flush |
| Packaging: | Individually packaged in a cardboard box. |
| Weight: | 0.8 kg |
| Description | Material |
|---|---|
| Panel Body | SPCC |
| Transparent Shutter & Label Holder | PC |
| Black Plastic | ABS |
| Max Capacity: | 24 connectors |
| Installation Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Suitability - Indoor: | Yes |
| Related Parts: | Compatible with 10GX, CAT6+ and CAT5E KeyConnect Modular Jacks, REVConnect Modular Jacks as well as KeyConnect Multimedia Modules. |
| Item # | Color | Putup Type |
|---|---|---|
| AP106503 | Black | 1U |
| Included Parts: | 4 Screws (M6*16); 4 M6 Nuts; 1 Ground Wire(200mm), Rear Cable Management Bar, Cable Ties |
| Notes: | For proper installation refer to Installation Guide PX105408 included with the product |
| Update and Revision: | Revision Number: 0.29 Revision Date: 04-08-2022 |
