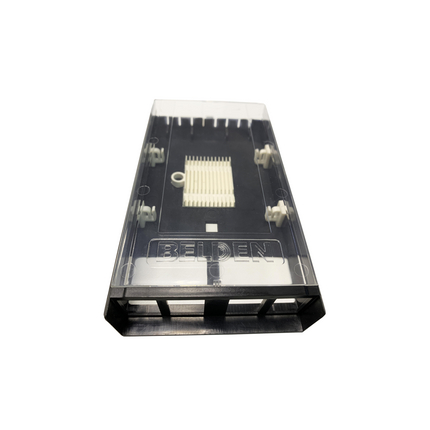

AP104223 - Cassettes for KeyConnect Module


4 Ports Cassettes for KeyConnect unshielded jacks and fiber adapter, Black(empty)

Product Overview

Environmental Space: Indoor
Suitable Applications: Applicable for backbone terminations in telecommunications rooms or main distribution rooms among enterprise data center, CCTV, access to AP points, hospitality rooms, 5Gbase-station, etc.

Construction

Height: 27 mm
Width: 83 mm
Depth: 150 mm

Temperature Range

Operating Temperature Range: -10°C To +60°C
Storage Temperature Range: -10°C To +60°C

Product Material

Materials
MaterialColor
ABSBlack, Transparent Cover

Standards

MII Order #39 (China RoHS): Yes

Related Part Numbers

Included Parts: Splice organizer
Related Parts: Belden KeyConnect-style series parts - 10GX UTP Modular Jack (Cat6A), Cat6+ UTP Modular Jack (Cat6), Cat5e UTP Modular Jack (Cat5e), LC Duplex Fiber Adapter Module, 2U, 19’’ Rack mount enclosure - AP104220; Cassettes holder - AP104222

Product Notes

Notes: Due to the dimension reasons, the cassettes will not support Belden’s REV series products and shield jacks

History

Update and Revision: Revision Number: 0.18 Revision Date: 04-08-2022
No accessories are available for this product
