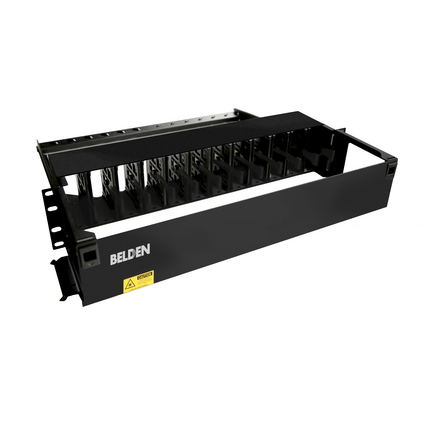

(4)FX 2U Rack Mount Housing, front-access design, holds up to 12 KeyConnect module cassettes, Black (Empty)
| Suitable Applications: | This 2U/19 in. copper and fiber multipurpose patch panel is suitable to mount with 19 in. standard equipment rack and cabinet located in central office equipment bays and especially designed for hospitality one-to-one management. |
| Overall Height: | 89 mm |
| Overall Width: | 482 mm |
| Depth: | 385 mm |
| Number of Ports: | 48 Port |
| Weight: | 3.6 kg |
| Material | Color |
|---|---|
| SPCC | Black |
| ABS | Black |
| Storage Temperature Range: | -40°C To +70°C |
| Operating Temperature Range: | -10°C To +60°C |
| Environmental Space: | Indoor |
| MII Order #39 (China RoHS): | Yes |
| Related Parts: | KeyConnect module cassettes: AP104223; Blank plate for unoccupied slot: AP104221 |
| Included Parts: | Velcro tape, Cage nuts, Screws and Label |
| Notes: | Number of Slots:12 Slots |
| Update and Revision: | Revision Number: 0.20 Revision Date: 11-19-2024 |
