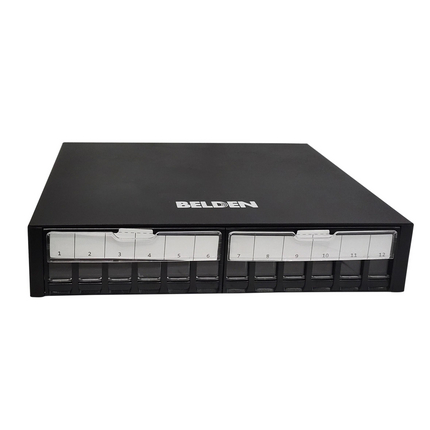

(4)12-Port Consolidation Box with Shutter (Black)
| Suitable Applications: | The product can be installed in ceiling or raised floor |
| Product Overview: | Related Parts: KeyConnect style Category 5e, Category 6 and Category 6A connectors and couplers, Max.Capacity: 12 Ports |
| Environmental Space: | Indoor |
| Height: | 45 mm |
| Width: | 230 mm |
| Depth: | 200 mm |
| Mechanical Characteristics Note: | Cable Entry: Bottom & Back |
| Operating Temperature Range: | -10°C To +60°C |
| Storage Temperature Range: | -40°C To +70°C |
| Material: | SPCC + ABS |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Included Parts: | Expansion Screw (M6*40)*4; Velcro Tape(L=150mm)*10; Grounding Wire*1; Label*1 |
| Packaging: | Individually packaged in a cardboard box |
| Update and Revision: | Revision Number: 0.28 Revision Date: 04-08-2022 |
