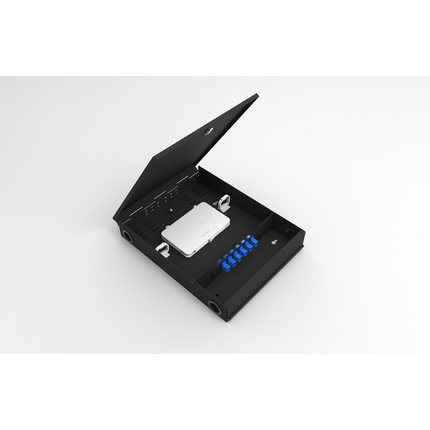

(4)Fiber Wall Mount Patch Panel with Lock, Black
| Environmental Space: | Indoor |
| Suitable Applications: | Space saving: the compact dimension (56.8mm*322.6mm*253.6mm) is suitable for applications with limited space, Flexible design for fiber accommodation: Support up to 24 fibers (LC connector), 12 fibers (SC connector), Splice tray and kit: support for fiber splicing and cable management, Lockable door to restrict unauthorized access, Easy installation and maintenance: foldable door is easy for installation and maintenance. |
| Height: | 253.6 mm |
| Width: | 322.6 mm |
| Depth: | 56.8 mm |
| Max Capacity: | upto 24F (LC adapter Strip) |
| Description | Material |
|---|---|
| Panel | Aluminum |
| ISO/IEC Compliance: | ISO 2768-1 |
| Included Parts: | Wire management saddles, Velcro tapes, Fiber heat shrink tube, Lock key |
| Related Parts: | This wall mount fiber patch panel is fully compatible with Belden fiber adapter strip & KeyConnect Frame (AP100065). KeyConnect Frame can support 6 ports unshielded KeyConnect modular jack or KeyConnect LC & SC adapter. Please contact our sales representatives for further information. |
| Item # | Color |
|---|---|
| AP100045 | Black |
| Notes: | AP100065 KeyConnect Frame, KeyConnect modular jack or KeyConnect LC & SC adapters need to be purchased separately. Rubber Gromment Diameter: ø 28 mm |
| Update and Revision: | Revision Number: 0.20 Revision Date: 08-13-2023 |
